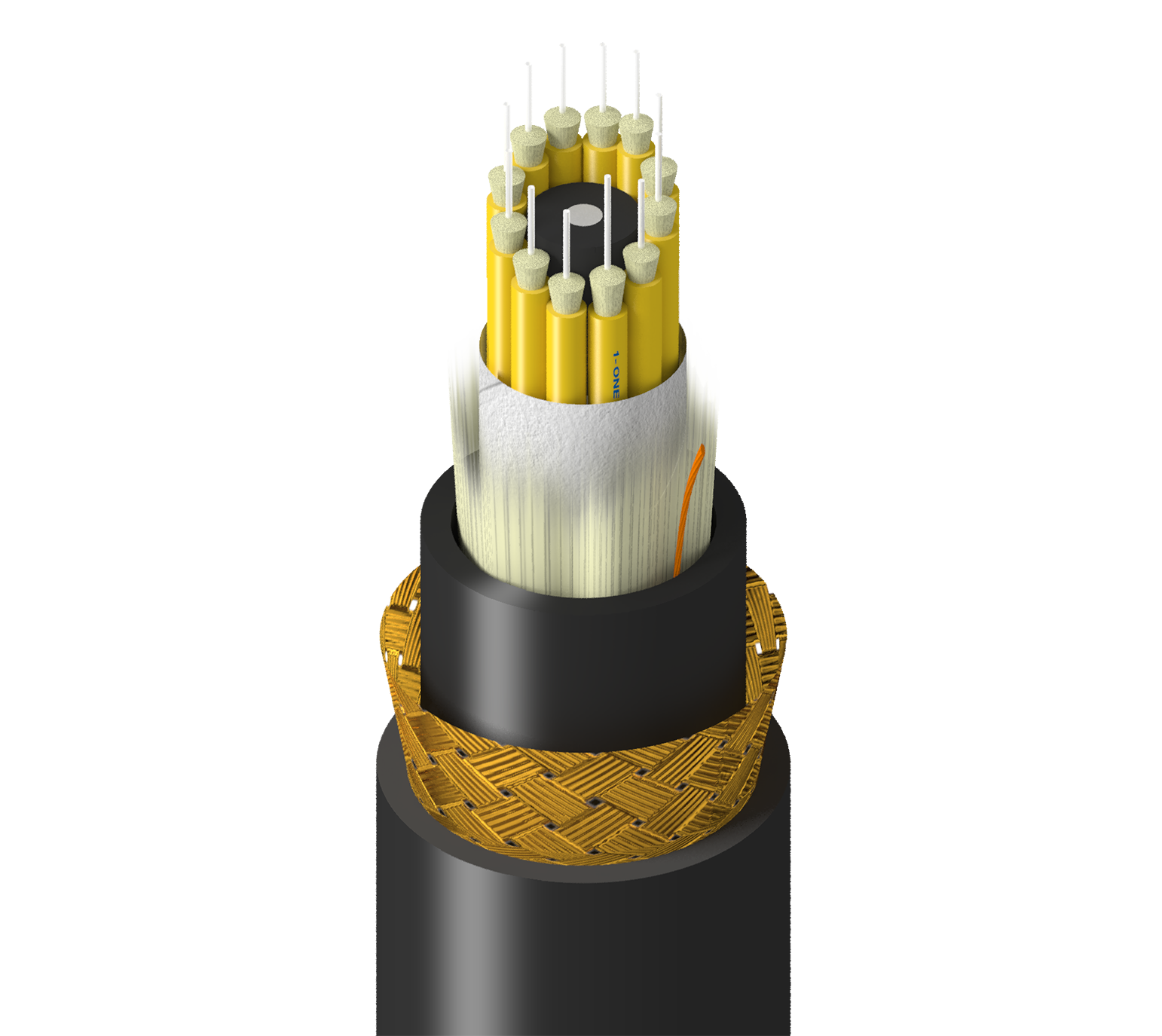

Marine, In+Outdoor, BO, OS2, 12f, Subunit 2.0mm, BBA, Dbl Jkt - LSZH, OFCR-ST1, ABS
Marine Grade, Indoor/Outdoor, Breakout, OS2, 12 Fibers, Subunits 2.0mm 900um, Bronze Braid Armor, Double Jacket - LSZH, OFCR-ST1, ABS Approved
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
TM-SBB-012-LBA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| TM-SBB-012-LBAN | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Breakout Cable |
|---|---|
| Suitable Applications | Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof |
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Buffer Material | LSZH - Low Smoke Zero Halogen |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 12 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 12 |
|---|---|
| Number of Fillers | 0 |
| Fibers Per Subunit | 1 |
| Subunit Waterblocking | Waterblocking Aramid |
| Subunit Diameter | 0.078 in (2.0 mm) |
| Subunit Color | Yellow |
| Fiber SubUnit Strength Members | Waterblocking aramid yarns |
| Central Strength Member Type | Upjacketed GRP |
| Core Wrap Material | Waterblocking tape |
Inner Jacket Specifications
| Inner Jacket Strength Member | Waterblocking Aramid Yarns |
|---|---|
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nominal Diameter@InnerJacket1 (cnv) | 0.550 in (14.0 mm) |
| Color | Black |
| Number of Inner Jacket Ripcords | 1 |
Armor Specifications
| Armor Type and Material | BBA - Bronze Braid Armor |
|---|
Outer Jacket Specifications
| Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 0.735 in (18.7 mm) |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5000 m | - |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 lbf) |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 307 lbf/kft (457 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | OFCR-ST1, FT4 |
| ICEA Compliance | S-104-696 |
| IEEE Compliance | IEEE 45, IEEE 1580 (braid only) |
| Marine Compliance | ABS |
History
| Update and Revision | Revision Number: 0.22 Revision Date: 09-07-2025 |
|---|
