Product Number: TM-1BB-018-LNA

Marine, In+Outdoor, BO, OM1, 18f, Subunit 2.0mm, Sgl Jkt - LSZH, OFNR-ST1, ABS

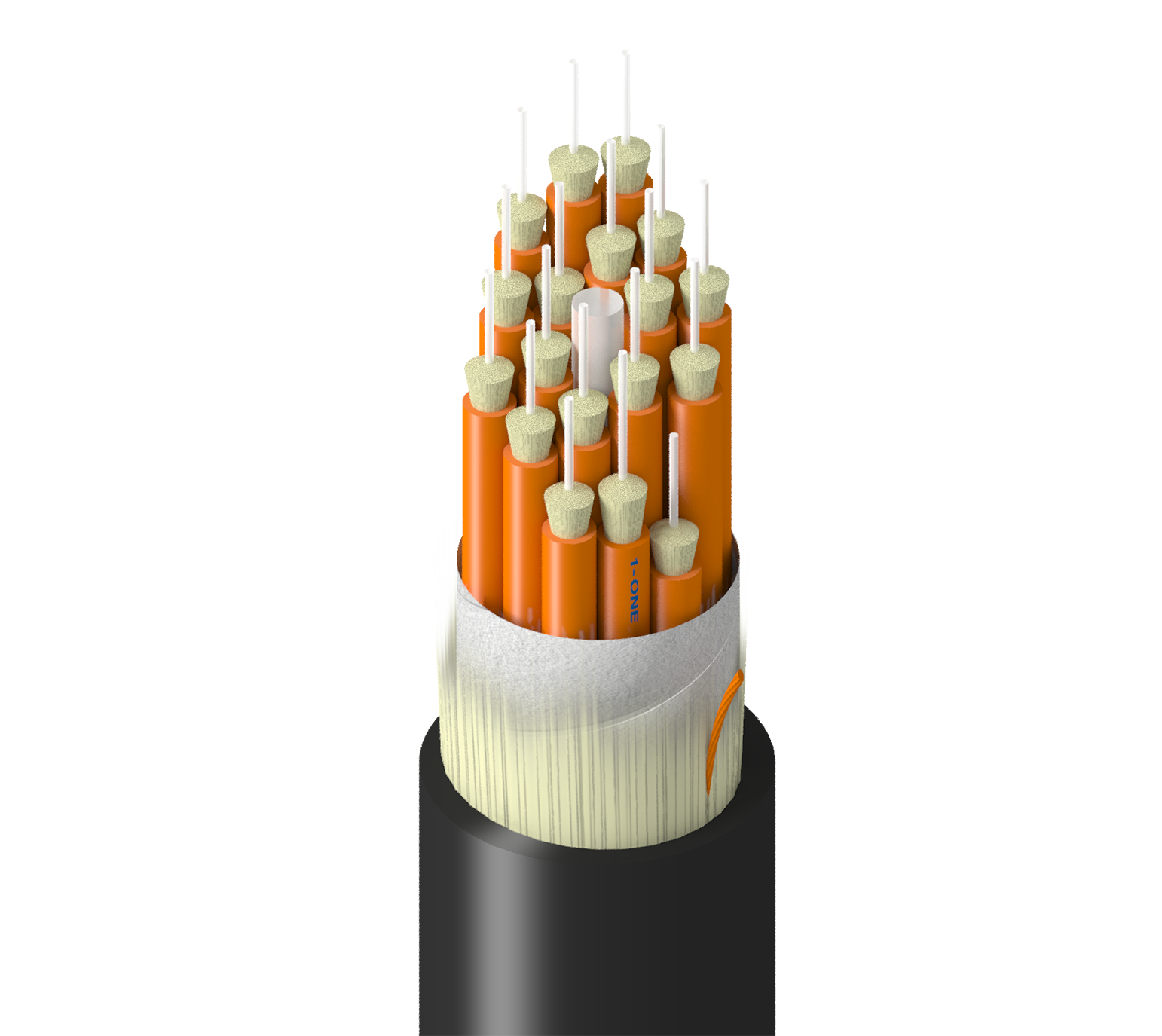

Name: Belden TM-1BB-018-LNA
Brand: Belden
SKU: TM-1BB-018-LNA

Marine Grade, Indoor/Outdoor, Breakout, OM1, 18 Fibers, Subunits 2.0mm 900um, Single Jacket - LSZH, OFNR-ST1, ABS Approved

Ships from and sold by A5 IT.

Part numbers

TM-1BB-018-LNA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Order
TM-1BB-018-LNAN	Black	Reel	Order online

Product Category	Fiber Breakout Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations

Number of Active Subunits	18
Number of Fillers	0
Fibers Per Subunit	1
Subunit Waterblocking	Waterblocking Aramid
Subunit Diameter	0.078 in (2.0 mm)
Subunit Color	Orange
Fiber SubUnit Strength Members	Waterblocking aramid yarns
Central Strength Member Type	GRP
Core Wrap Material	Waterblocking tape

Strength Member	Waterblocking Aramid Yarns
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	0.530 in (13.5 mm)
Outer Jacket Ripcord	1

Wavelength	850 nm	1300 nm
Max. Attenuation	3.5 dB/km	1.0 dB/km
1 Gigabit Ethernet Performance	300 m	550 m
10 Gigabit Ethernet Performance	33 m	-
Min. Restricted Mode Launch	220 MHz.km	-
Min. Overfilled Launch (OFL) Bandwidth	200 MHz.km	500 MHz.km

Minimum Bend Radius During Installation	15x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	220 N/cm
Bulk Cable Weight	118 lbs/kft (176 kg/km)

Installation Temperature Range	-10°C to +60°C
Operating Temperature Range	-40°C to +70°C
Storage Temperature Range	-40°C to +70°C

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	OFNR-ST1, FT4
ICEA Compliance	S-104-696
IEEE Compliance	IEEE 45
Marine Compliance	ABS
