Product Number: RIPPU

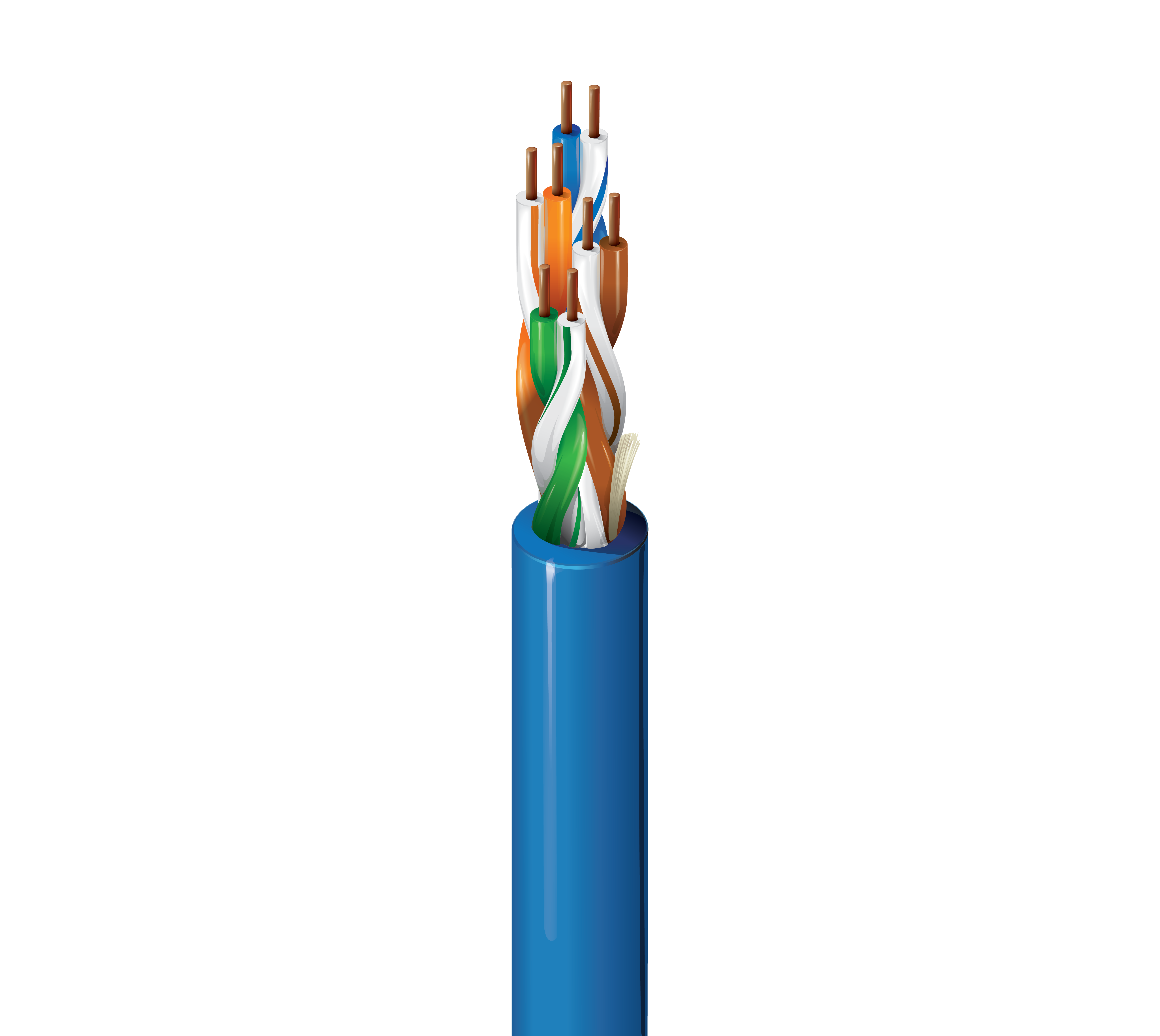

RemoteIP Cable, 4 Pair, U/UTP, CMP

Name: Belden RIPPU
Brand: Belden
SKU: RIPPU

RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP - Unshielded, Plenum-CMP, Flamarrest® PVC-LS Jacket

Ships from and sold by A5 IT.

Part numbers

RIPPU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
RIPPU D15A1000	Blue	Reel-in-Box	1,000 ft	Order online
RIPPU 009A1000	White	Reel-in-Box	1,000 ft	Order online

Suitable Applications	Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE, Category 6

Material	PO+FEP - Polyolefin + Fluorinated Ethylene Propylene
Color Code	White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.260 in (6.60 mm)

Max. Conductor DCR	56.5 Ohm/km (17.2 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m

Max. Delay	537.6 ns/100m
Nom. Velocity of Prop.	70%

UL Voltage Rating	300 V (CMP)

Max. Pull Tension	25 lbs (11 kg)
Bulk Cable Weight	35 lbs/1000ft (52 kg/km)

Installation Min.	2.60 in (66.0 mm)

Environmental Suitability	Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262 Plenum (UL 910), FT6
CEC / C(UL) Compliance	CMP.
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical system. Recommended for use with REVConnect Large Cores, Part Number RVUECOGY.
