Product Number: NH50116UFA

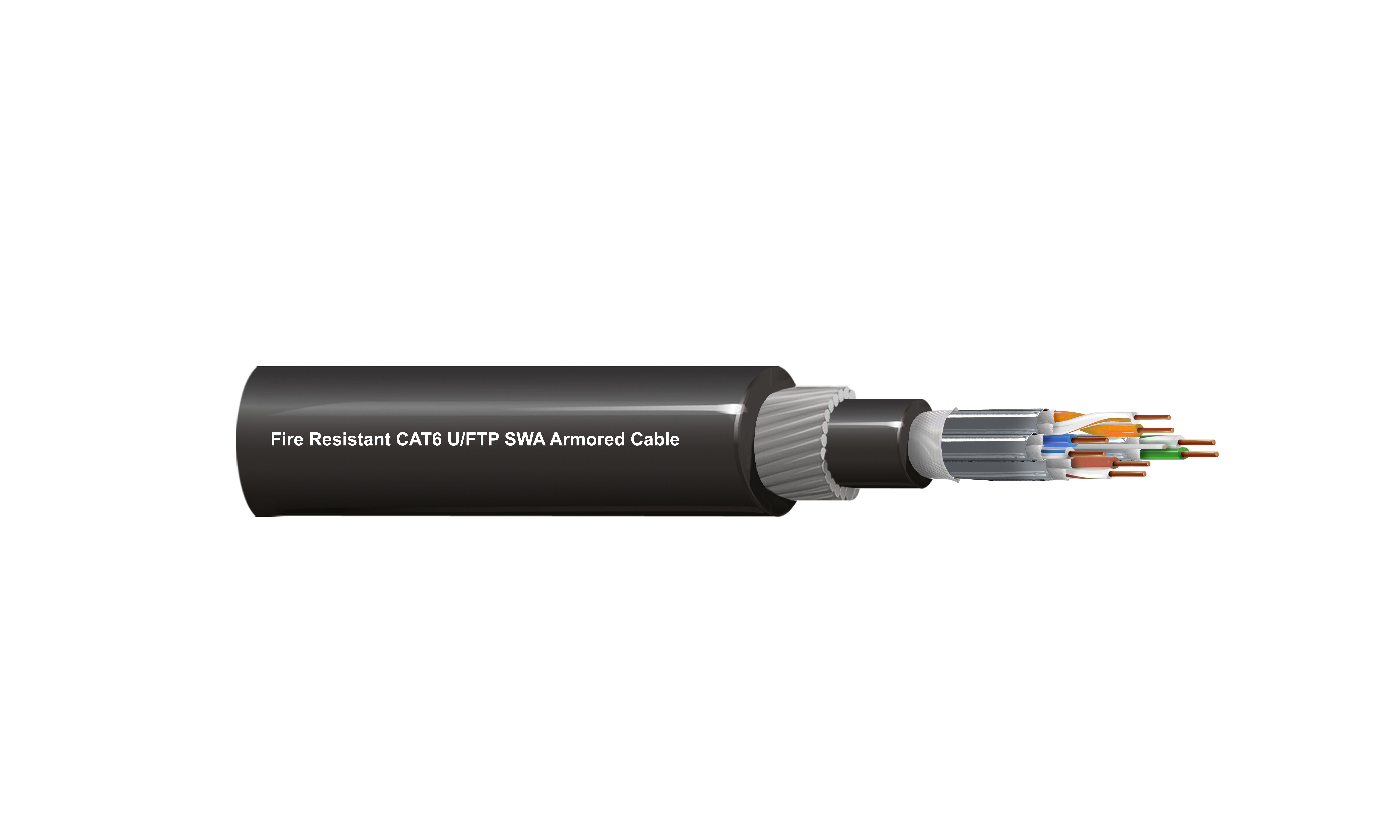

DataTuffTM Industrial Ethernet CAT6 4X2X23AWG/1 U/FTP SWA Fire Resistant

23 AWG solid bare copper conductors, Polyethylene insulation, Mica Glass Tape Fire Protection, Individual Shielded Pair (U/FTP), Central Drain Wire, Mica Glass Tape, LSZH Inner Jacket, SWA, LSZH Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Industrial Ethernet Cat 6 connection with Fire Resistant capability

Construction Details

Outer Jacket1 Table Notes	Outer Jacket Color: Blue (or per customer's request)

Conductor

Element	Conductor(s)
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1.58 mm (0.0622 in)
Color Code	Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip
Notes	Fire Protection Barrier: Mica glass Tape(MGT)

Inner Shield

Element	Individual Shielded Pair
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Drainwire Type	26 AWG (Solid) TC
Notes	Fire Protection Barrier: Mica Glass Tape(MGT)

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	11.80 mm (0.4646 in)
Color	Blue

Armor

Armor Type & Material	SWA - Steel Wire Armor

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	15.30 mm (0.6024 in)

Electrical Characteristics

Electricals

Max. Conductor DCR	73.2 Ohm/km @ 20 Deg. C
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	45 ns/70m

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]
4	3.8 dB/70m	65.3	63.3	55.8	52.8	23.0
10	6.0 dB/70m	59.3	57.3	47.8	44.8	25.0
20	8.5 dB/70m	54.8	52.8	41.8	38.8	25.0
25	9.5 dB/70m	53.3	51.3	39.8	36.8	24.3
31.25	10.7 dB/70m	51.9	49.9	37.9	34.9	23.6
62.5	15.4 dB/70m	47.4	45.4	31.9	28.9	21.5
100	19.8 dB/70m	44.3	42.3	27.8	24.8	20.1
250	32.8 dB/70m	38.3	36.3	19.8	16.8	17.3

Voltage

UL Voltage Rating	60 V

Mechanical Characteristics

Temperature

Operating	-40°C To +60°C

Standards and Compliance

Environmental Suitability	UV Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23
Data Category	Category 6
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	IEC 61156-5
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.50%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
