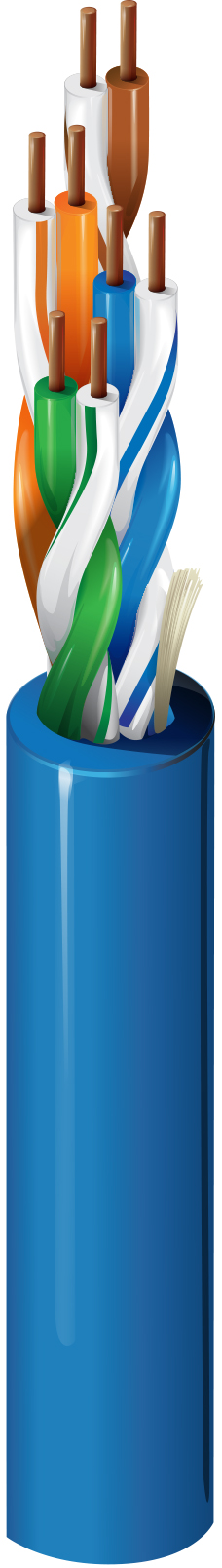

D6UR

Product Number: D6UR

Category 6 Cable, 4 Pair, U/UTP, CMR

Category 6 Premise Horizontal Cable (250MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket

Availability
Americas
Status
Active
Orderable items
9
Request a quoteOrder options (9)

Ships from and sold by A5 IT.

Part numbers

D6UR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthUPCOrder
D6UR 010U1000BlackUnreel1,000 ft612825451549Order online
D6UR 006U1000Blue, LightUnreel1,000 ft612825451501Order online
D6UR 008U1000GrayUnreel1,000 ft612825451525Order online
D6UR 005U1000Green, DarkUnreel1,000 ft612825451495Order online
D6UR 003U1000OrangeUnreel1,000 ft612825451471Order online
D6UR 002U1000RedUnreel1,000 ft612825451464Order online
D6UR 007U1000VioletUnreel1,000 ft612825451518Order online
D6UR 009U1000WhiteUnreel1,000 ft612825451532Order online
D6UR 004U1000YellowUnreel1,000 ft612825451488Order online

Specifications

Product Overview

Suitable ApplicationsPremise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE
PatentThis product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Overall Cable Diameter (Nominal)0.224 in (5.69 mm)

Conductor

Size23
StrandingSolid
MaterialBC - Bare Copper
No. of Pairs4

Insulation

MaterialPO - Polyolefin
Color CodeWhite/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Diameter0.224 in
RipcordYes

Electrical Characteristics

Electricals

Max. Conductor DCR78 Ohm/km (24 Ohm/1000ft)
Max. Capacitance Unbalance330 pF/100m

Delay

Frequency100 MHz
Max. Delay537.6 ns/100m
Max. Delay Skew35 ns/100m
Nom. Velocity of Prop.70%

Voltage

UL Voltage Rating300 V RMS (CMR)

Mechanical Characteristics

Max. Pull Tension25 lbs (11 kg)
Bulk Cable Weight22 lbs/1000ft (33 kg/km)

Temperature

UL Temperature75°C
Operating-20°C To +75°C
Installation0°C To +50°C
Storage-20°C To +75°C

Bend Radius

Stationary Min.1.0 in (25 mm)
Installation Min.2.25 in (57.2 mm)

Standards and Compliance

Environmental SuitabilityRiser Indoor, Indoor
SustainabilityProduct LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to FireUL 1666 Riser
CPR ComplianceCPR Euroclass: Eca
NEC / UL ComplianceCMR
CEC / C(UL) ComplianceCMR.
IEEE ComplianceIEEE 802.3bt Type 1, Type 2, Type 3, Type 4
TIA/EIA ComplianceANSI/TIA-568-C.2 Category 6
Third Party Performance VerificationCategory 6
ISO/IEC Compliance11801 ed 2.2 (2011) Class E
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Plenum NumberD6UP

Product Notes

NotesElectrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and RevisionRevision Number: 0.118 Revision Date: 07-06-2026
