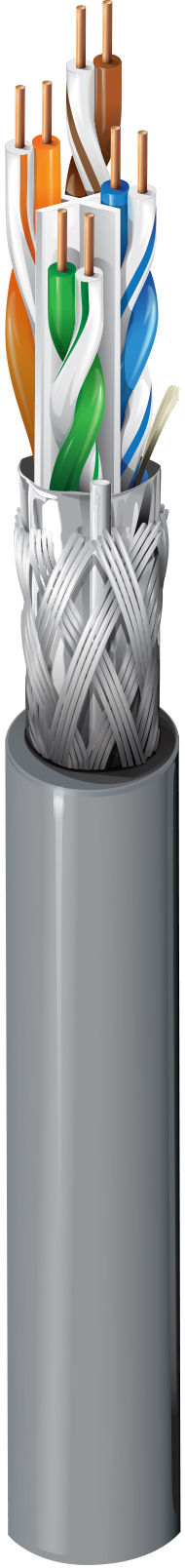

Product Number: 7860ESR

Category 6 Cable, 4 Pair bonded, SF/UTP, PVC Indoor CMR

Category 6 Premise Horizontal Cable (250MHz), 4-Pair, 23 AWG solid bare copper conductors, SF/UTP, Polyethylene insulation, Beldfoil® shield, AWG 26 solid tinned copper drainwire, tinned copper braid shield (80% coverage), PVC CMR rated jacket

Availability: EMEA
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

7860ESR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
7860ESR.10305	Black	Reel	305 m	8719605016690	Order online
7860ESR.02305	Red	Reel	305 m	8719605016683	Order online

Specifications

Product Overview

Suitable Applications	Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM

Construction Details

Bonded-Pair	Yes
Outer Shield Table Notes	Aluminum facing outside in contact with drain wire
Overall Cable Diameter (Nominal)	7.7 mm (0.30 in)

Conductor

Element	Individual Pair
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Element	Individual Pair
Material	PE - Polyethylene
Nom. Insulation Diameter	1.35 mm (0.0531 in)
Color Code	White/Blue & Blue, White/Green & Green, White/Orange & Orange, White/Brown & Brown

Cable Core

Description	4 pairs twisted together covered with a polyester foil
Separator	Center Member (Patented X-Spline®)

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (Solid) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	7.7 mm (0.30 in)

Electrical Characteristics

High Frequency Table Notes	Limits below 4 MHz are for information only. Reference standard: IEC 61156-5
Transfer Impedance Class	Grade 2
Screening Class	Type II
Screening Table Notes	Coupling Attenuation

Electricals

Max. Conductor DCR	95 Ohm/km (29 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	67%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1 dB/100m	75.3	72.3	73.2	70.2	70	67	20	40	35
4	3.8 dB/100m	66.3	63.3	62.4	59.4	58	55	23	34	23
10	6 dB/100m	60.3	57.3	54.3	51.3	50	47	25	30	15
16	7.6 dB/100m	57.2	54.2	49.6	46.6	45.9	42.9	25	28	10.9
20	8.5 dB/100m	55.8	52.8	47.3	44.3	44	41	25	27	9
31.2	10.7 dB/100m	52.9	49.9	42.1	39.1	40.1	37.1	23.6	25.1	5.1
62.5	15.5 dB/100m	48.4	45.4	32.9	29.9	34.1	31.1	21.5	22
100	19.9 dB/100m	45.3	42.3	25.4	22.4	30	27	20.1	20
155	25.3 dB/100m	42.4	39.4	17.1	14.1	26.2	23.2	18.8	18.1
200	29.1 dB/100m	40.8	37.8	11.6	8.6	24	21	18	17
250	33 dB/100m	39.3	36.3	6.3	3.3	22	19	17.3	16

Transfer Impedance

Frequency	Max. Transfer Impedance
1 Mhz	Max. 50 mOhm/m
10 Mhz	Max. 100 mOhm/m
30 Mhz	Max. 200 mOhm/m
100 Mhz	Max. 1000 mOhm/m

Voltage

Voltage Rating	72 V DC

Mechanical Characteristics

Max. Pull Tension	110 N (25 lbf)
Bulk Cable Weight	70 kg/km

Temperature

Operating	-30°C to +60°C
Installation	0°C To +50°C

Bend Radius

Stationary Min.	30 mm (1.2 in)
Installation Min.	60 mm

Standards and Compliance

Environmental Suitability	Indoor
IEEE Compliance	PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1, Segregation class according EN50174-2 = c
European Directive Compliance	EU CE Mark
UK Regulation Compliance	UKCA Mark
