Product Number: 7835ANH

CAT 6 4P23AWG, F/UTP, LSZH Jkt

Name: Belden 7835ANH
Brand: Belden
SKU: 7835ANH

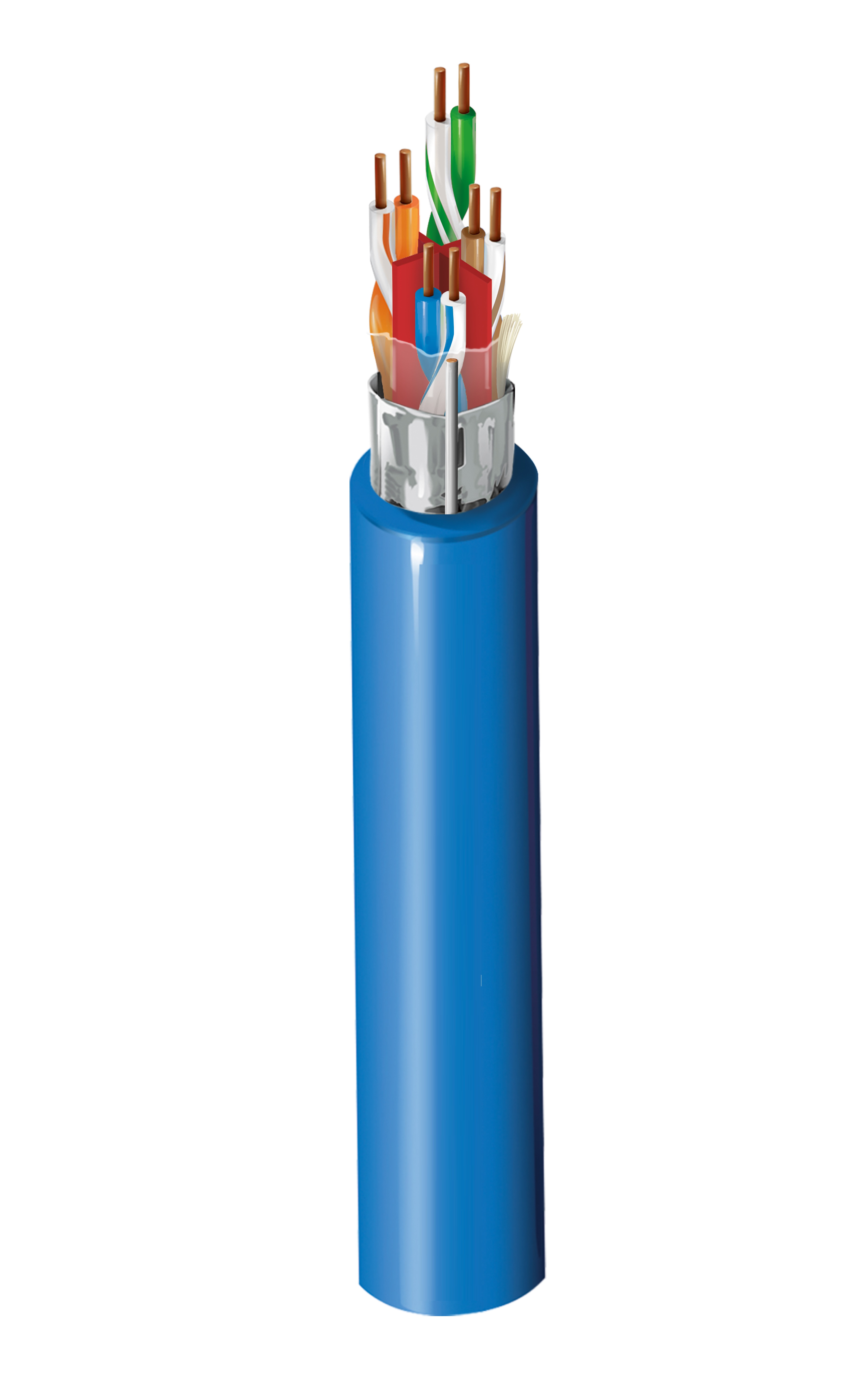

CAT 6 4PR x 23AWG, F/UTP, Solid Bare Copper Conductor, HDPE Insulation, LSZH Jacket

Ships from and sold by A5 IT.

Part numbers

7835ANH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
7835ANH 006305M	Blue	305 m	Order online
7835ANH 008305M	Gray	305 m	Order online

Suitable Applications	Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 and PoE application

Material	PE - Polyethylene
Nom. Insulation Diameter	1.16 mm (0.0457 in)
Color Code	Blue & White with Blue, Orange & White with Orange, Green & White with Green, Brown & White with Brown

Material	Bi-Laminate (Alum+Poly)

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	7.2 mm
Ripcord	Yes

High Frequency Table Notes	Limits below 4MHz are for information only.

Max. Conductor DCR	95 Ohm/km (29 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Max. Delay Skew	45 ns/100m

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	75.3	72.3	73.2	70.2	68.0	65.0	20.0	40.0	35.0
4	3.8	66.3	63.3	62.5	59.5	56.0	53.0	23.0	34.0	23.0
10	6.0	60.3	57.3	54.4	51.4	48.0	45.0	25.0	30.0	15.0
16	7.6	57.2	54.2	49.8	46.8	43.9	40.9	25.0	28.0	10.9
31.25	10.7	52.9	49.9	42.4	39.4	38.1	35.1	23.6	25.1	5.1
62.5	15.5	48.4	45.4	33.4	30.4	32.1	29.1	21.5	22.0
100	19.9	45.3	42.3	26.2	23.2	28.0	25.0	20.1	20.0
125	22.5	43.8	40.8	22.3	19.3	26.1	23.1	19.4	19.0
200	29.1	40.8	37.8	13.2	10.2	22.0	19.0	18.0	17.0
250	33.0	39.3	36.3	8.3	5.3	20.0	17.0	17.2	16.0

Max. Pull Tension	80 N (18 lbf)
Bulk Cable Weight	52 kg/km (35 lbs/1000ft)

Operating	-30°C To +60°C

Flammability / Reaction to Fire	IEC 60332-1-2
Data Category	Category 6
TIA/EIA Compliance	ANSI/TIA-568-D.2 Category 6
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance	Segregation class according EN50174-2 = c
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 5 mg/g, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
