7814ANH

Product Number: 7814ANH

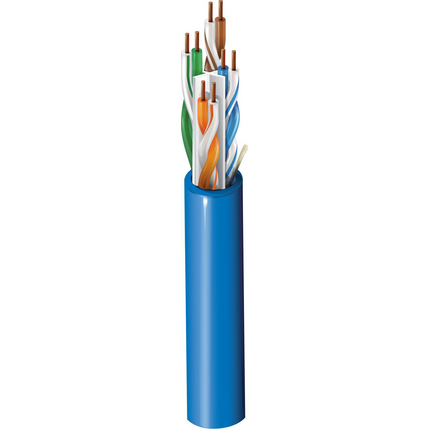

CAT 6 4P 24AWG, U/UTP, LSZH Jkt, Indoor

CAT 6 4PR x 24AWG U/UTP, Solid Bare Copper Conductor, PE Insulation, LSZH Jacket, Indoor

Availability
Asia Pacific
Status
Active
Orderable items
21
Request a quoteOrder options (21)

Ships from and sold by A5 IT.

Part numbers

7814ANH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthOrder
7814ANH 010A305MBlackReel in Box305 mOrder online
7814ANH 010A1000BlackReel in Box1,000 ftOrder online
7814ANH 006A305MBlueReel in Box305 mOrder online
7814ANH 006U305MBlueUnreel305 mOrder online
7814ANH 006A1000BlueReel in Box1,000 ftOrder online
7814ANH 006U1000BlueUnreel1,000 ftOrder online
7814ANH 0062000MBlueReel2,000 mOrder online
7814ANH 005A305MGreenReel in Box305 mOrder online
7814ANH 005A1000GreenReel in Box1,000 ftOrder online
7814ANH 008A305MGreyReel in Box305 mOrder online
7814ANH 008U305MGreyUnreel305 mOrder online
7814ANH 008A1000GreyReel in Box1,000 ftOrder online
7814ANH 008U1000GreyUnreel1,000 ftOrder online
7814ANH 003A305MOrangeReel in Box305 mOrder online
7814ANH 003A1000OrangeReel in Box1,000 ftOrder online
7814ANH 002A305MRedReel in Box305 mOrder online
7814ANH 002A1000RedReel in Box1,000 ftOrder online
7814ANH 007A305MVioletReel in Box305 mOrder online
7814ANH 007A1000VioletReel in Box1,000 ftOrder online
7814ANH 004A305MYellowReel in Box305 mOrder online
7814ANH 004A1000YellowReel in Box1,000 ftOrder online

Specifications

Product Overview

Suitable ApplicationsPremise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 and PoE application.

Construction Details

Conductor

Size24
StrandingSolid
MaterialBC - Bare Copper
No. of Pairs4

Insulation

MaterialPE - Polyethylene
Nom. Insulation Diameter0.97 mm (0.038 in)
Color CodeBlue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe

Outer Jacket

MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter5.8 mm (0.23 in)
RipcordYes

Electrical Characteristics

Electricals

Max. Conductor DCR93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Mutual Capacitance56 pF/m (17 pF/ft)
Max. Capacitance Unbalance330 pF/100m
Nom. Characteristic Impedance100 Ohm

Delay

Frequency100 MHz
Max. Delay538 ns/100m
Max. Delay Skew45 ns/100m
Nom. Velocity of Prop.70%

High Frequency

Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Min. TCL [dB]Min. ELTCTL [dB]
12.0 dB/100m74.372.372.370.367.864.820.040.035.0
43.8 dB/100m65.363.361.559.555.852.823.040.023.0
85.3 dB/100m60.858.855.554.549.746.724.540.016.9
106.0 dB/100m59.357.353.350.347.844.825.040.015.0
167.6 dB/100m56.254.248.746.743.740.725.038.010.9
208.5 dB/100m54.852.846.344.341.838.825.037.09.0
259.5 dB/100m53.351.343.841.839.836.824.336.07.0
31.2510.7 dB/100m51.949.941.439.437.934.923.635.1
62.515.4 dB/100m47.445.432.030.031.928.921.532.0
10019.8 dB/100m44.342.324.522.527.824.820.130.0
15525.2 dB/100m41.439.416.314.324.021.018.827.0
20029.0 dB/100m39.837.810.88.821.818.818.027.0
25032.8 dB/100m38.336.319.816.817.3

Mechanical Characteristics

Max. Pull Tension110 N (25 lbf)
Bulk Cable Weight40.5 kg/km (27.2 lbs/1000ft)

Temperature

Operating-20°C to +75°C

Bend Radius

Installation Min.23.2 mm (0.913 in)

Standards and Compliance

Environmental SuitabilityIndoor, Indoor, Non-Halogenated
Flammability / Reaction to FireIEC 60332-1-2
IEEE ComplianceIEEE 802.3bt Type1,Type2, Type3, Type4
Data CategoryCategory 6
TIA/EIA ComplianceANSI/TIA 568.2-D
ISO/IEC ComplianceISO/IEC 11801-1, IEC 61156-5
European Halogen Free StandardsIEC 60754-1 - Halogen Amount = 5 mg/g, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive ComplianceEU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC ComplianceChina RoHS II (GB/T 26572-2011)

Product Notes

NotesJacket sequentially marked

History

Update and RevisionRevision Number: 0.53 Revision Date: 02-20-2026
