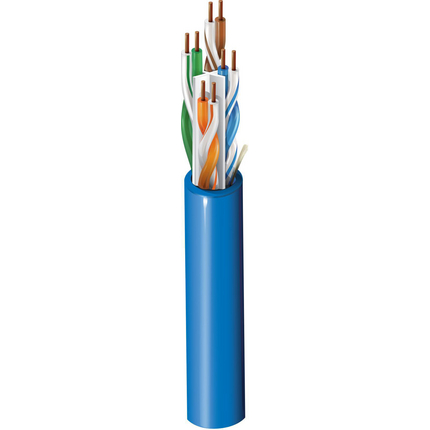

Category 6 – U/UTP 4Pair 24AWG, GB 31247 B1 Rating
7814ANB1 - Category 6 – U/UTP 4Pair 24AWG, GB 31247 B1 Rating
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 2
Part numbers
7814ANB1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| 7814ANB1 006305M | Blue | 305 M | Order online |
| 7814ANB1 008305M | Gray | 305 M | Order online |
Specifications
Product Overview
| Suitable Applications | Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG,1000BaseTX, ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 and PoE application |
|---|
Construction Details
Conductor
| Size | 24 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Color Code | Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 6.2 mm (0.24 in) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 93.8 Ohm/km |
|---|---|
| Max. Capacitance Unbalance | 330 pF/100m |
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay | 538 ns/100m |
|---|---|
| Max. Delay Skew | 45 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 | 74.3 | 72.3 | 72.3 | 70.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 61.5 | 59.5 | 55.8 | 52.8 | 23.0 |
| 8 | 5.3 | 60.8 | 58.8 | 55.4 | 53.4 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 57.3 | 53.3 | 51.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.2 | 54.2 | 48.7 | 46.7 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 46.3 | 44.3 | 41.8 | 38.8 | 25.0 |
| 25 | 9.5 | 53.3 | 51.3 | 43.8 | 41.8 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 49.9 | 41.2 | 39.2 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 32.0 | 30.0 | 31.9 | 28.9 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 24.5 | 22.5 | 27.8 | 24.8 | 20.1 |
| 200 | 29.0 | 39.8 | 37.8 | 10.8 | 8.8 | 21.8 | 18.8 | 18.0 |
| 250 | 32.8 | 38.3 | 36.3 | 5.5 | 3.5 | 19.8 | 16.8 | 17.3 |
Voltage
| UL Voltage Rating | 72 V DC |
|---|
Mechanical Characteristics
| Max. Pull Tension | 110 N (25 lbf) |
|---|---|
| Bulk Cable Weight | 40.5 kg/km (27.2 lbs/1000ft) |
Temperature
| Operating | -20°C to +60°C |
|---|
Bend Radius
| Installation Min. | 49.6 mm (1.95 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Non-Halogenated |
|---|---|
| GB Compliance | GB 31247 |
| Data Category | Category 6 |
| TIA/EIA Compliance | ANSI/TIA 568.2-D |
| ISO/IEC Compliance | IEC 61156-5, ISO/IEC 11801 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Product Notes
| Notes | GB 31247 B1 (d0, t0, a1) |
|---|
History
| Update and Revision | Revision Number: 0.18 Revision Date: 02-26-2026 |
|---|
