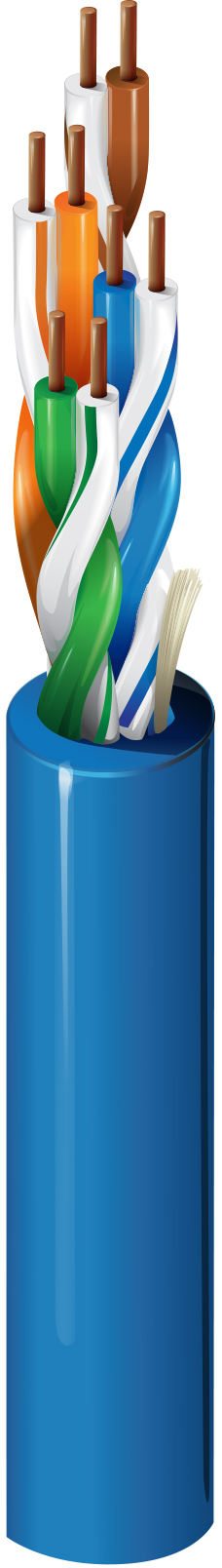

7814A

Product Number: 7814A

CAT 6 4P 24AWG, U/UTP, PVC Jkt, Indoor,CM

CAT 6 4PR x 24AWG, Solid Bare Copper Conductor, U/UTP, PE Insulation, CM,PVC Jacket, Indoor

Availability
Asia Pacific
Status
Active
Orderable items
18
Request a quoteOrder options (18)

Ships from and sold by A5 IT.

Part numbers

7814A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthOrder
7814A 010A1000BlackReel in Box1,000 ftOrder online
7814A 010U1000BlackBox1,000 ftOrder online
7814A 006A1000BlueReel in Box1,000 ftOrder online
7814A 006U1000BlueBox1,000 ftOrder online
7814A 005A1000GreenReel in Box1,000 ftOrder online
7814A 005U1000GreenBox1,000 ftOrder online
7814A 008A1000GreyReel in Box1,000 ftOrder online
7814A 008U1000GreyBox1,000 ftOrder online
7814A 003A1000OrangeReel in Box1,000 ftOrder online
7814A 003U1000OrangeBox1,000 ftOrder online
7814A 002A1000RedReel in Box1,000 ftOrder online
7814A 002U1000RedBox1,000 ftOrder online
7814A 007A1000VioletReel in Box1,000 ftOrder online
7814A 007U1000VioletBox1,000 ftOrder online
7814A 009A1000WhiteReel in Box1,000 ftOrder online
7814A 009U1000WhiteBox1,000 ftOrder online
7814A 004A1000YellowReel in Box1,000 ftOrder online
7814A 004U1000YellowBox1,000 ftOrder online

Specifications

Product Overview

Suitable ApplicationsPremise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6

Construction Details

Conductor

Size24
StrandingSolid
MaterialBC - Bare Copper
No. of Pairs4

Insulation

MaterialPE - Polyethylene
Nom. Insulation Diameter0.97 mm (0.038 in)
Color CodeBlue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe

Outer Jacket

MaterialPVC - Polyvinyl Chloride
Nom. Diameter5.8 mm (0.23 in)
RipcordYes

Electrical Characteristics

High Frequency Table NotesThird party verified to TIA 568.2-D, Category 6. Typical Values are for reference only

Electricals

Max. Conductor DCR93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Mutual Capacitance56 pF/m (17 pF/ft)
Max. Capacitance Unbalance330 pF/100m
Nom. Characteristic Impedance100 Ohm

Delay

Frequency100 MHz
Max. Delay538 ns/100m
Max. Delay Skew45 ns/100m
Nom. Velocity of Prop.70%

High Frequency

Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Min. TCL [dB]Min. ELTCTL [dB]
12.0 dB/100m74.372.372.370.367.864.820.040.035.0
43.8 dB/100m65.363.361.559.555.852.823.040.023.0
85.3 dB/100m60.858.855.554.549.746.724.540.016.9
106.0 dB/100m59.357.353.350.347.844.825.040.015.0
167.6 dB/100m56.254.248.746.743.740.725.038.010.9
208.5 dB/100m54.852.846.344.341.838.825.037.09.0
259.5 dB/100m53.351.343.841.839.836.824.336.07.0
31.2510.7 dB/100m51.949.941.439.437.934.923.635.1
62.515.4 dB/100m47.445.432.030.031.928.921.532.0
10019.8 dB/100m44.342.324.522.527.824.820.130.0
20029.0 dB/100m39.837.810.88.821.818.818.027.0
25032.8 dB/100m38.336.35.53.519.816.817.326.0

Mechanical Characteristics

Max. Pull Tension110 N (25 lbf)
Bulk Cable Weight36.0 kg/km (24.2 lbs/1000ft)

Temperature

Operating-20°C to +75°C

Bend Radius

Installation Min.23.2 mm (0.913 in)

Standards and Compliance

Environmental SuitabilityIndoor, Indoor
Flammability / Reaction to FireUL1685
NEC / UL ComplianceCM
CEC / C(UL) ComplianceCM.
Data CategoryCategory 6
TIA/EIA ComplianceANSI/TIA 568.2-D
ISO/IEC ComplianceISO/IEC 11801-1, IEC 61156-5
European Directive ComplianceEU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC ComplianceChina RoHS II (GB/T 26572-2011)

Product Notes

NotesJacket sequentially marked

History
