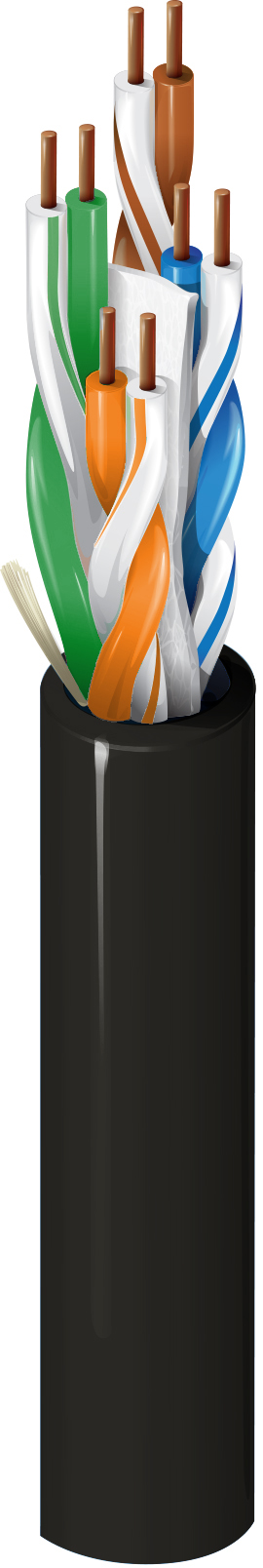

RemoteIP Cable, 4 Pair, U/UTP, CMR-CMX
RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP, CMR/CMX-Outdoor, UV Resistant PVC Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RIPRXU is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| RIPRXU 0101000 | Black | Reel | 1,000 ft | Order online |
Specifications
Product Overview
| Suitable Applications | Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE, Category 6 |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| Size | 22 AWG |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Outer Jacket
| Separator | Dielectric Tape (Patented) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.30 in (7.6 mm) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 56.5 Ohm/km (17.2 Ohm/1000ft) |
|---|---|
| Max. Capacitance Unbalance | 330 pF/100m |
Delay
| Max. Delay | 537.6 ns/100m |
|---|---|
| Nom. Velocity of Prop. | 70% |
Voltage
| UL Voltage Rating | 300 V (CMR, CMX-Outdoor) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 25 lbs (11 kg) |
|---|---|
| Bulk Cable Weight | 35 lbs/1000ft (52 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -40°C To +75°C |
| Installation | -25°C To +75°C |
| Storage | -40°C To +80°C |
Bend Radius
| Installation Min. | 2.50 in (63.5 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser |
| NEC / UL Compliance | Article 800, Article 725, CMR-CMX, CMR, CMX-Outdoor |
| CEC / C(UL) Compliance | CMR-CMX OUTDOOR. |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| Data Category | Category 6 |
| TIA/EIA Compliance | ANSI/TIA-568.2-D Category 6 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Electrical values are expected performance based on cable testing and representative performance within a typical system. Recommended for use with REVConnect Large Core, Part Number RVUECOGY. |
|---|
History
| Update and Revision | Revision Number: 0.30 Revision Date: 11-19-2025 |
|---|
