Product Number: ZC29HBF03

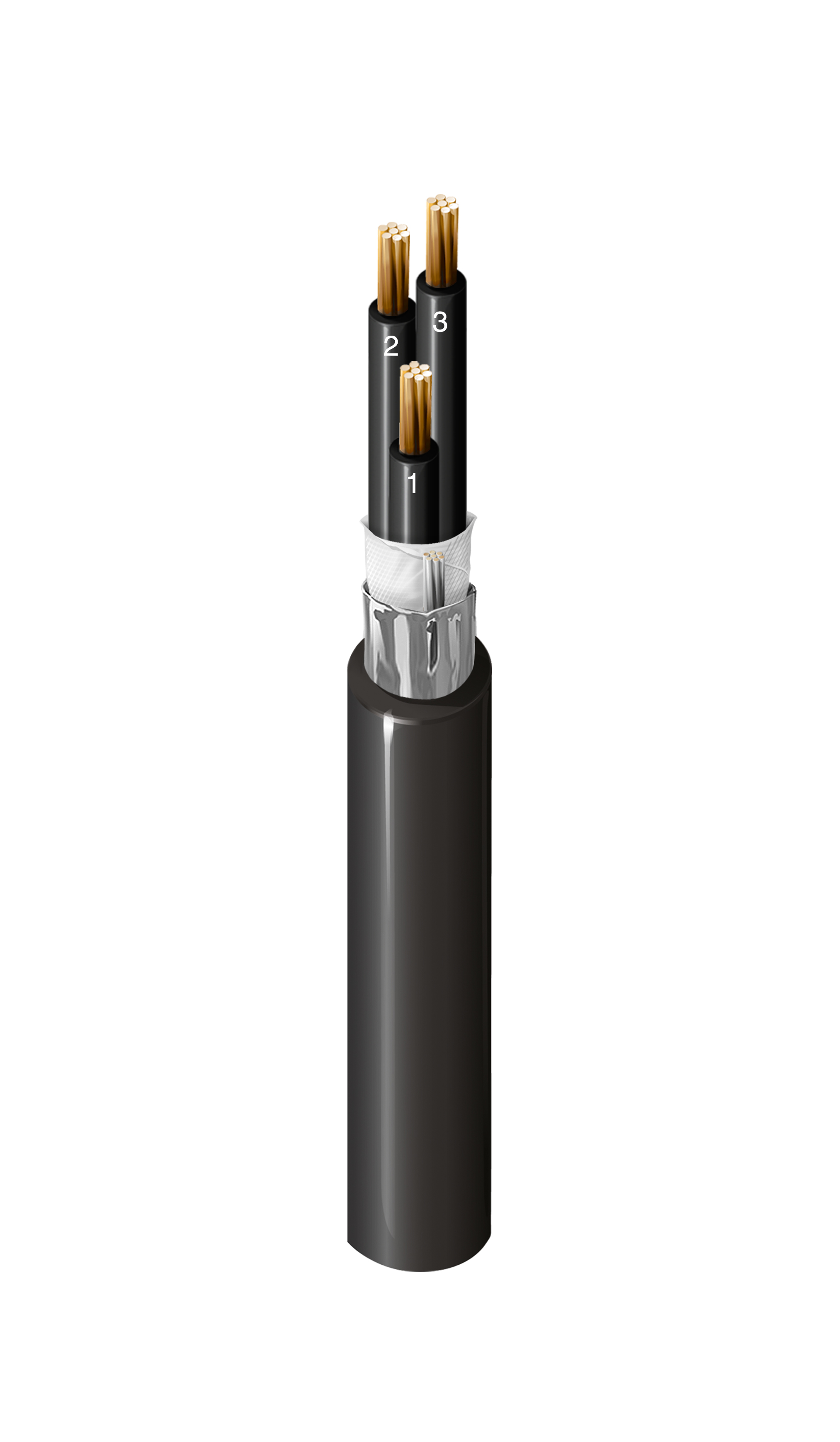

3C0.5mm2 XLP/OS/LSZH B1 Fire Resistance cable

3C0.5mm2, Stranded bare copper conductor, wrapped by mica tape binder, XLPE Insulated, Overall Foil Shielded along with ATC drain wire & Overall single LSZH Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	For Control Applications up to 300V

Construction Details

Inner Jacket Table Notes	All Cores laid up together & binded by Non- woven tape binder
Overall Cable Diameter (Nominal)	8.2 mm (0.32 in)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	0.5 mm2
Material	BC - Bare Copper
Notes	Mica tape wrapped over the conductors

Insulation

Material	XLPE
Color Code	Black 1, Black 2, Black 3

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Notes	ATC drain wire placed along with Overall Foil shield

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)

Electrical Characteristics

Electricals

Max. Conductor DCR	36.72 Ω/km @ 20°C

Voltage

Voltage Rating	300 V

Mechanical Characteristics

Bulk Cable Weight	86 kg/km (58 lbs/1000ft)

Temperature

Operating	-30°C To +90°C

Standards and Compliance

Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60331-21, BS 6387 CWZ , SS 299-1
GB Compliance	GB 31247 B1 (d0, t1, a1)
ISO/IEC Compliance	Smoke Density as per IEC 61034-2
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 4.3 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 10
