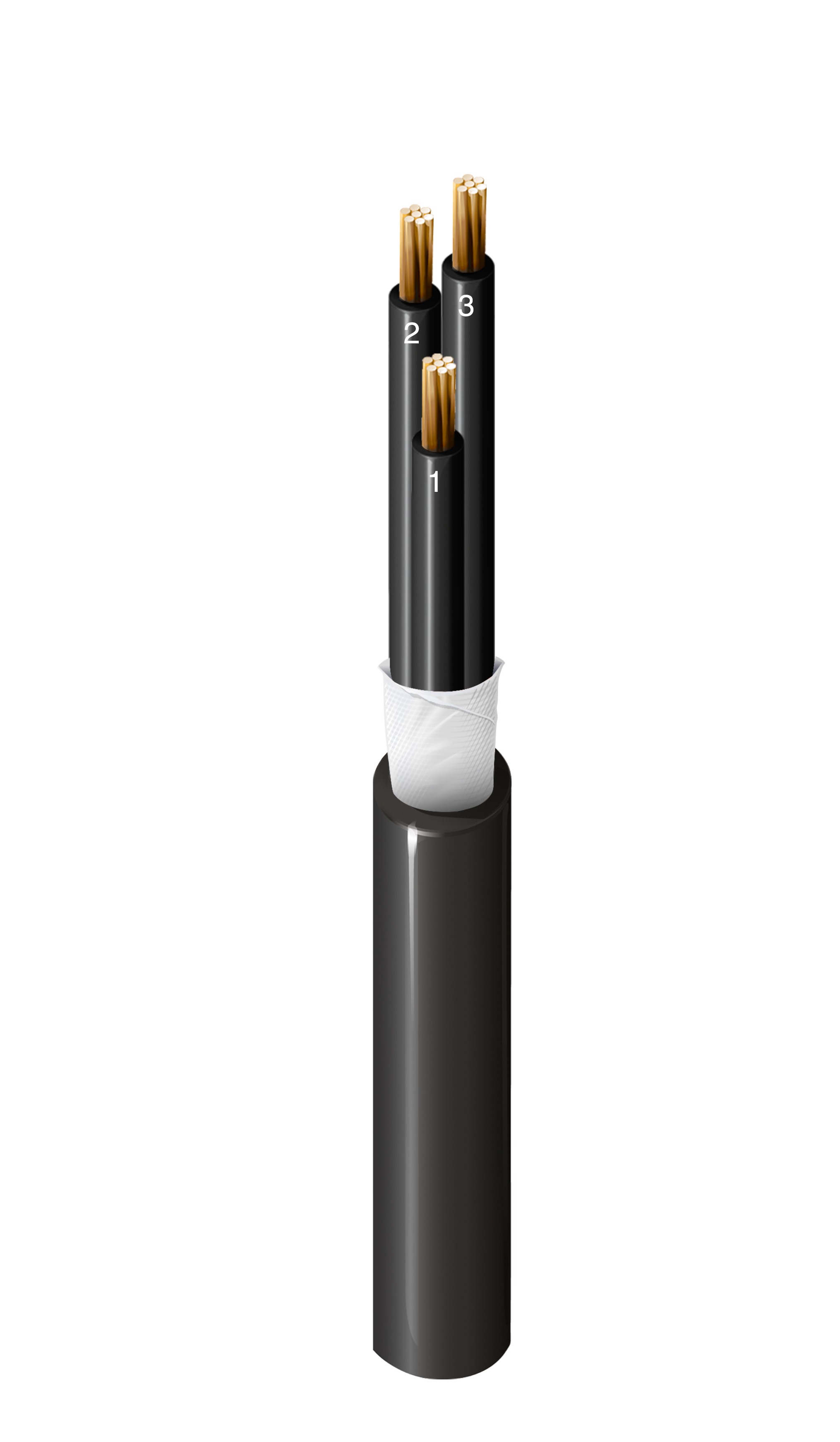

3C0.5mm2 XLP/LSZH
3C0.5mm2, Stranded bare copper conductor, XLPE Insulated & Overall single LSZH Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | For Control Applications up to 300V |
|---|
Construction Details
| Inner Jacket Table Notes | All pairs laid up together & binded by Non-woven tape binder |
|---|---|
| Overall Cable Diameter (Nominal) | 5.9 mm (0.23 in) |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 0.5 mm2 |
| Material | BC - Bare Copper |
Insulation
| Material | XLPE |
|---|---|
| Color Code | Black 1, Black 2, Black 3 |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | 36 Ω/km @ 20°C |
|---|
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -30°C To +90°C |
|---|
Standards and Compliance
| GB Compliance | GB 31247 B1 (d0, t1, a1) |
|---|---|
| ISO/IEC Compliance | Smoke Density as per IEC 61034-2 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 4.3 , IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 10 |
Product Notes
| Notes | EN 50228-7, IEC 60332-3C |
|---|
History
| Update and Revision | Revision Number: 0.13 Revision Date: 07-12-2024 |
|---|
