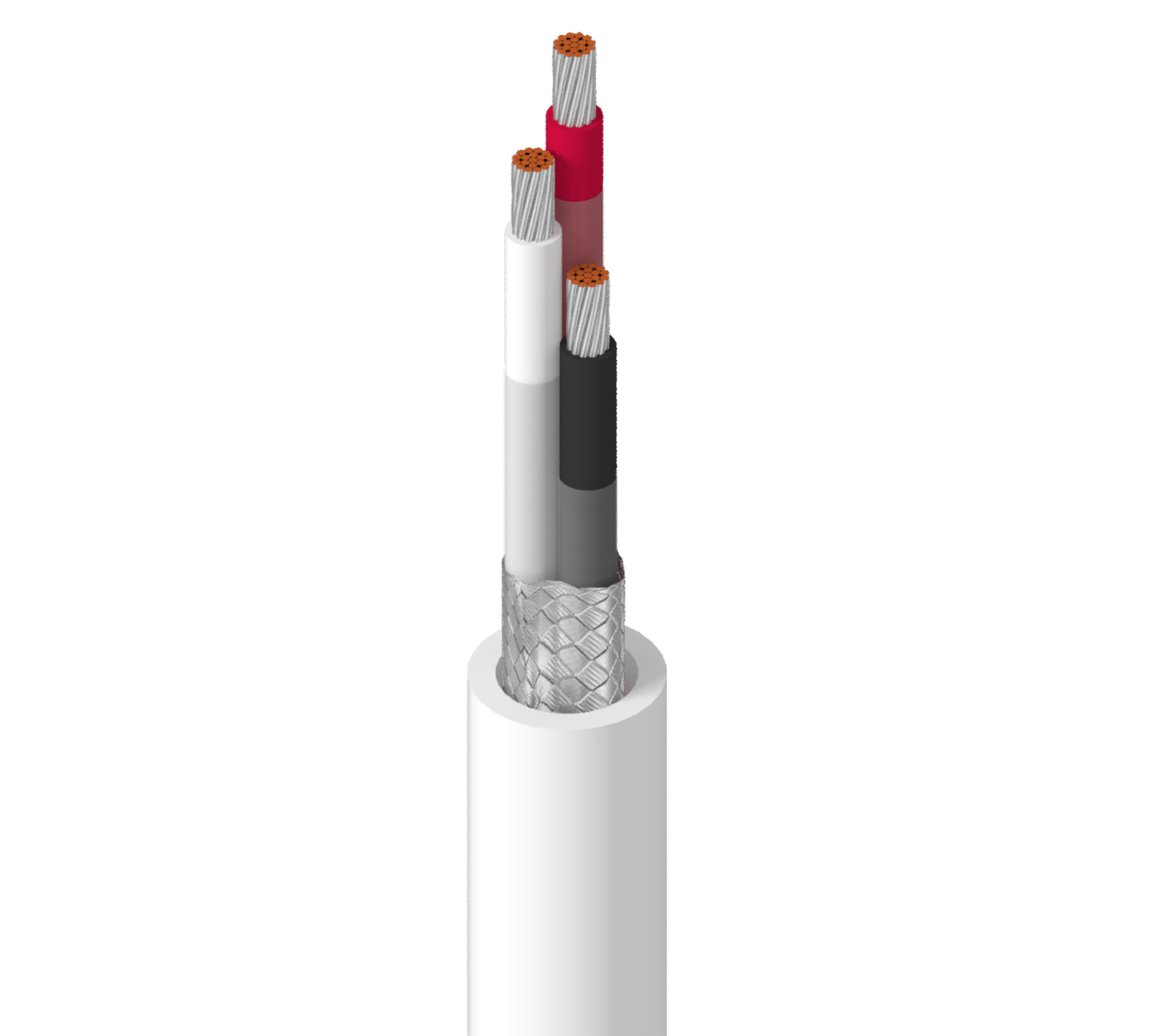

Electronic, 3 C #22 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 3 Conductor 22AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9967 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9967 009100 | White | 612825265344 | Order online |
| 9967 0091000 | White | 612825265351 | Order online |
| 9967 009500 | White | 612825265368 | Order online |
Specifications
Product Overview
| Suitable Applications | MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 |
| Stranding | 19x34 |
| Material | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | 0.0125 in (0.318 mm) | 0.056 in (1.4 mm) | White, Black, Red |
| Nylon | 0.003 in (0.076 mm) |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.02 in (0.51 mm) |
| Nom. Diameter | 0.184 in |
Electrical Characteristics
| Nom Outer Shield DCR | 5.3 Ohm/1000ft (17 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 15.3 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 45 pF/ft (150 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 88 pF/ft (290 pF/m) |
| Nom. Inductance | 0.144 μH/ft (0.472 μH/m) |
| Max. Current | 2.8 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 28.5 lbs (12.9 kg) |
|---|---|
| Bulk Cable Weight | 24 lbs/1000ft |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C To +105°C |
Bend Radius
| Stationary Min. | 1.84 in (46.7 mm) |
|---|---|
| Installation Min. | 1.84 in |
Standards and Compliance
| CPR Compliance | CPR Euroclass: Eca |
|---|---|
| Military Compliance | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.515 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
