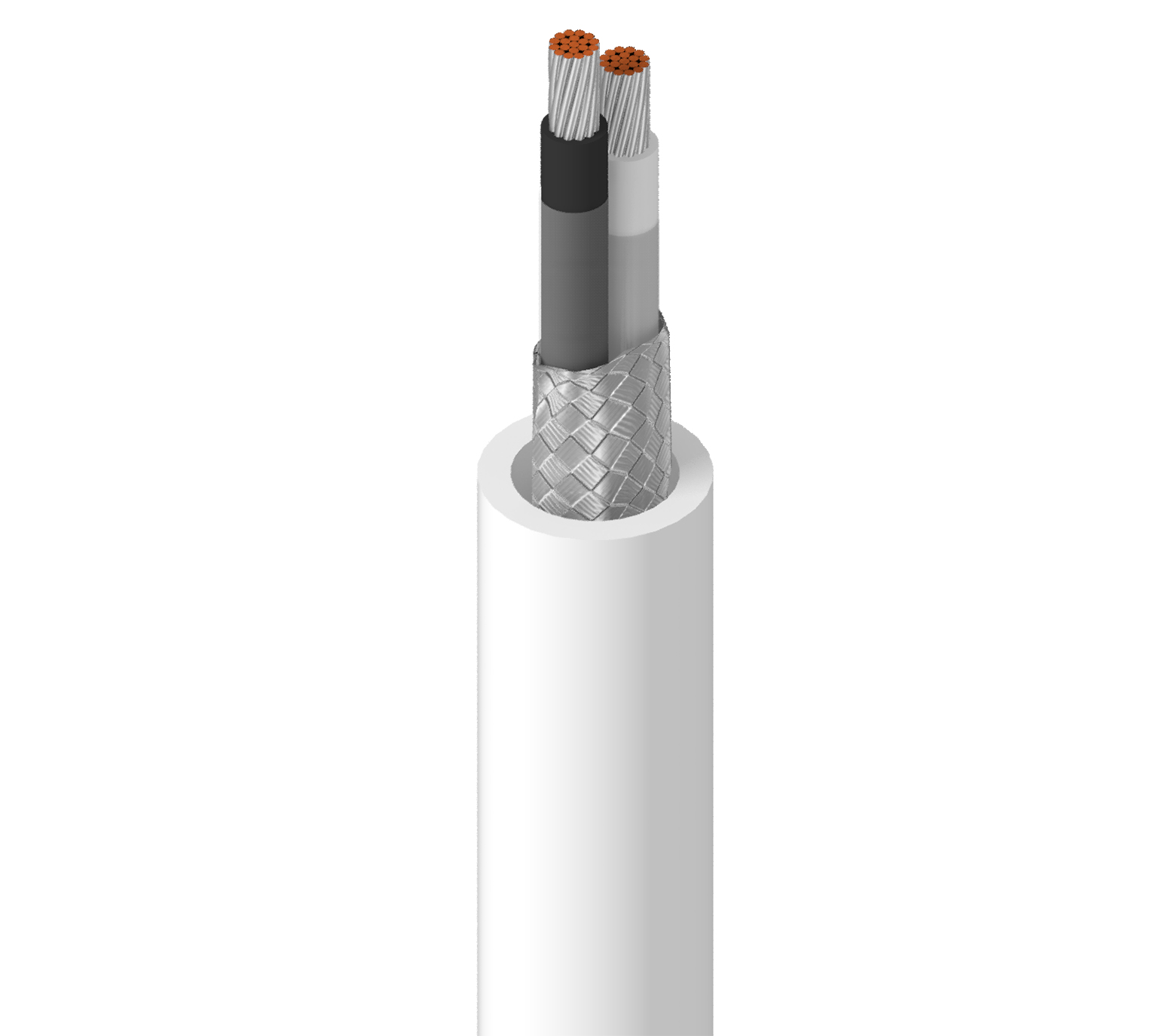

Electronic, 2 C #20 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 2 Conductor 20AWG (19x32) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9962 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9962 009100 | White | 612825265214 | Order online |
| 9962 0091000 | White | 612825265221 | Order online |
| 9962 009500 | White | 612825265238 | Order online |
Specifications
Product Overview
| Suitable Applications | MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.192 in (4.88 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 20 AWG |
| Stranding | 19x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. Thickness | 0.011 in (0.28 mm) |
| Color Code | White, Black |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Diameter | 0.192 in (4.88 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 6.8 Ohm/1000ft (22 Ohm/km) |
|---|
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 9.1 Ohm/1000ft (30 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 53 pF/ft (170 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 91 pF/ft (300 pF/m) |
| Nom. Inductance | 0.134 μH/ft (0.440 μH/m) |
| Max. Current | 3.8 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 30 lbs (14 kg) |
|---|---|
| Bulk Cable Weight | 22 lbs/1000ft (33 kg/km) |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C to +105°C |
Bend Radius
| Stationary Min. | 1.9 in (48 mm) |
|---|---|
| Installation Min. | 1.9 in (48 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| CPR Compliance | CPR Euroclass: Eca |
| Military Compliance | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.372 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
