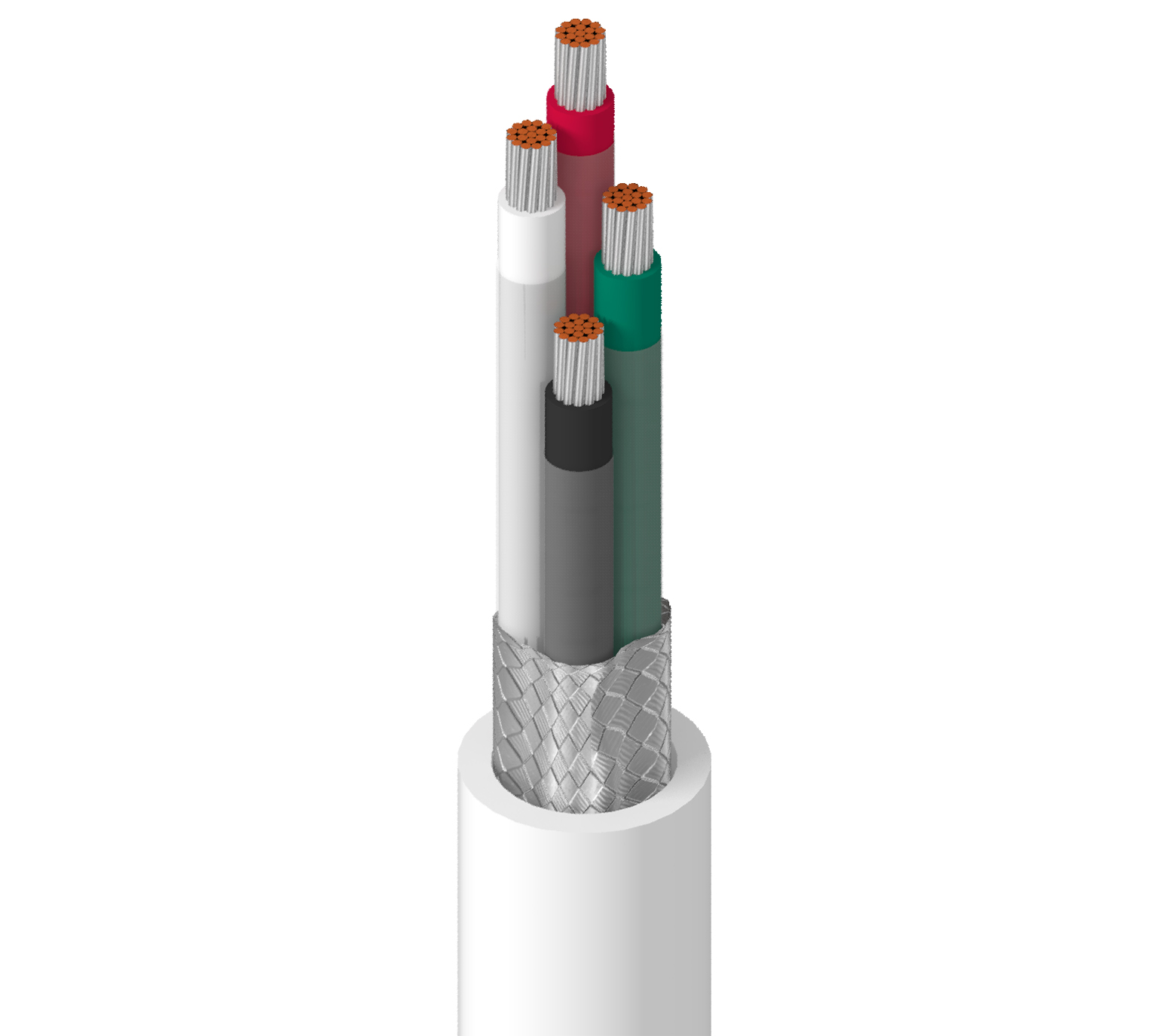

Electronic, 4 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 4 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9954 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9954 009100 | White | 612825265160 | Order online |
| 9954 0091000 | White | 612825265177 | Order online |
| 9954 009500 | White | 612825265184 | Order online |
Specifications
Product Overview
| Suitable Applications | MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.291 in (7.39 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 16 AWG |
| Stranding | 19x29 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. Thickness | 0.012 in (0.30 mm) |
| Nom. Insulation Diameter | 0.088 in (2.2 mm) |
| Color Code | White, Black, Red, Green |
Outer Shield
| Shield Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage | 90% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.027 in (0.69 mm) |
| Nom. Diameter | 0.291 in (7.39 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 4.4 Ohm/1000ft (14 Ohm/km) |
|---|
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 4.4 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 49 pF/ft (160 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 94 pF/ft (310 pF/m) |
| Nom. Inductance | 0.108 μH/ft (0.354 μH/m) |
| Max. Current | 6.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 200 lbs (91 kg) |
|---|---|
| Bulk Cable Weight | 69 lbs/1000ft |
Temperature
| Operating | -20°C to +105°C |
|---|
Bend Radius
| Stationary Min. | 2.9 in (74 mm) |
|---|---|
| Installation Min. | 2.9 in (74 mm) |
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1581 (VW-1), VW-1 |
| Military Compliance | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.513 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
