Product Number: 9951

Electronic, 1 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt

Name: Belden 9951
Brand: Belden
SKU: 9951

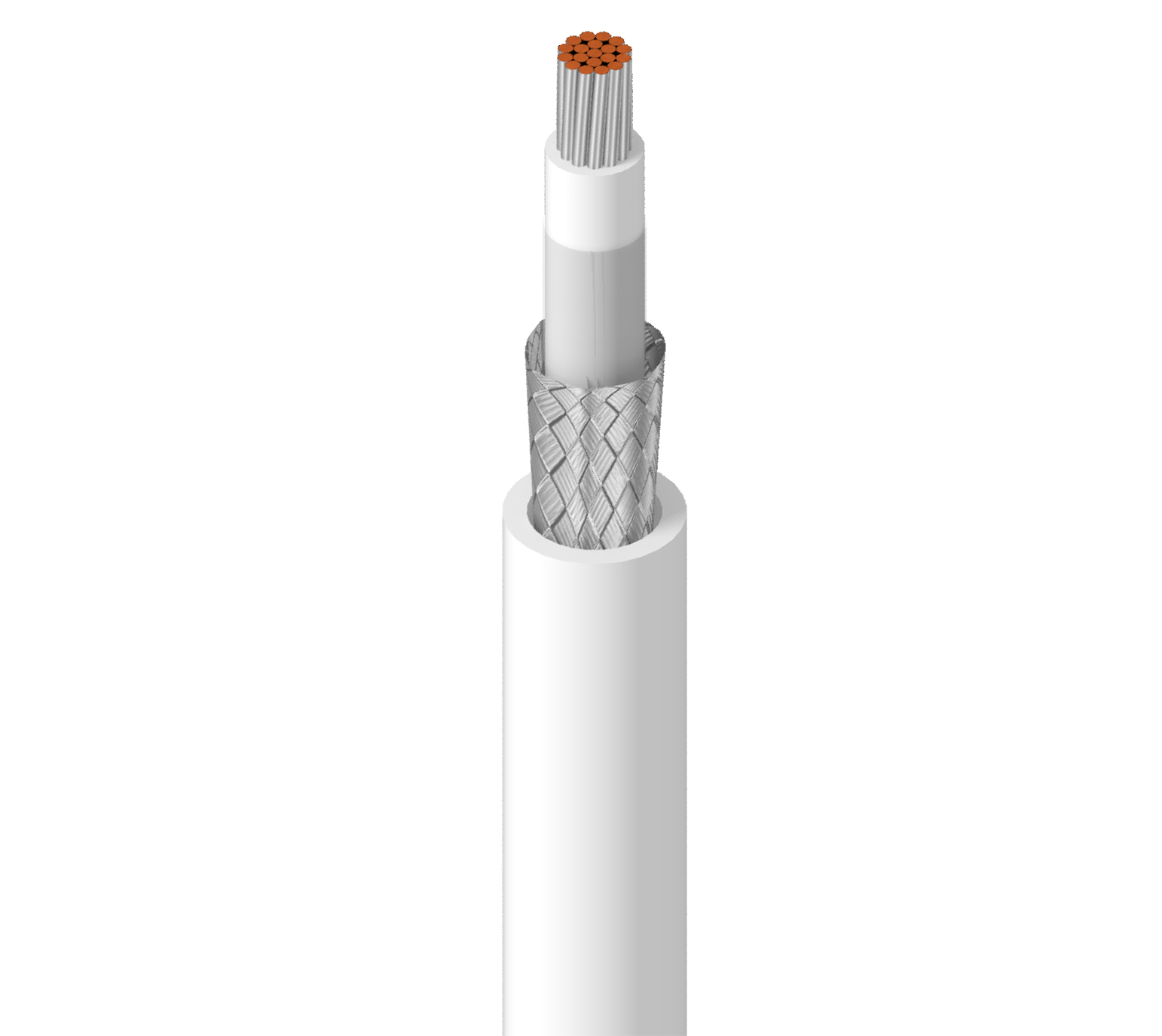

Electronic, 1 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket

Ships from and sold by A5 IT.

Part numbers

9951 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
9951 0091000	White	612825265092	Order online

Suitable Applications	MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Overall Cable Diameter (Nominal)	0.143 in.

Element	Conductor(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.016 in (0.41 mm)
Nom. Insulation Diameter	0.088 in (2.2 mm)
Color Code	White

Nom Outer Shield DCR	7.2 Ohm/1000ft (24 Ohm/km)

Nom. Conductor DCR	4.4 Ohm/1000ft
Nom. Capacitance Cond-to-Shield	138 pF/ft (453 pF/m)
Max. Current	6.5 Amps per Conductor at 25oC

Voltage Rating	600 V

Max. Pull Tension	40 lbs (18 kg)
Bulk Cable Weight	20 lbs/1000ft

UL Temperature	105°C
Operating	-20°C To +105°C

Stationary Min.	1.43 in (36.3 mm)
Installation Min.	1.43 in

Flammability / Reaction to Fire	VW-1
Military Compliance	MIL-W-16878E/17 (insulated conductor)
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
