Product Number: 9950

RS232, #22-50c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

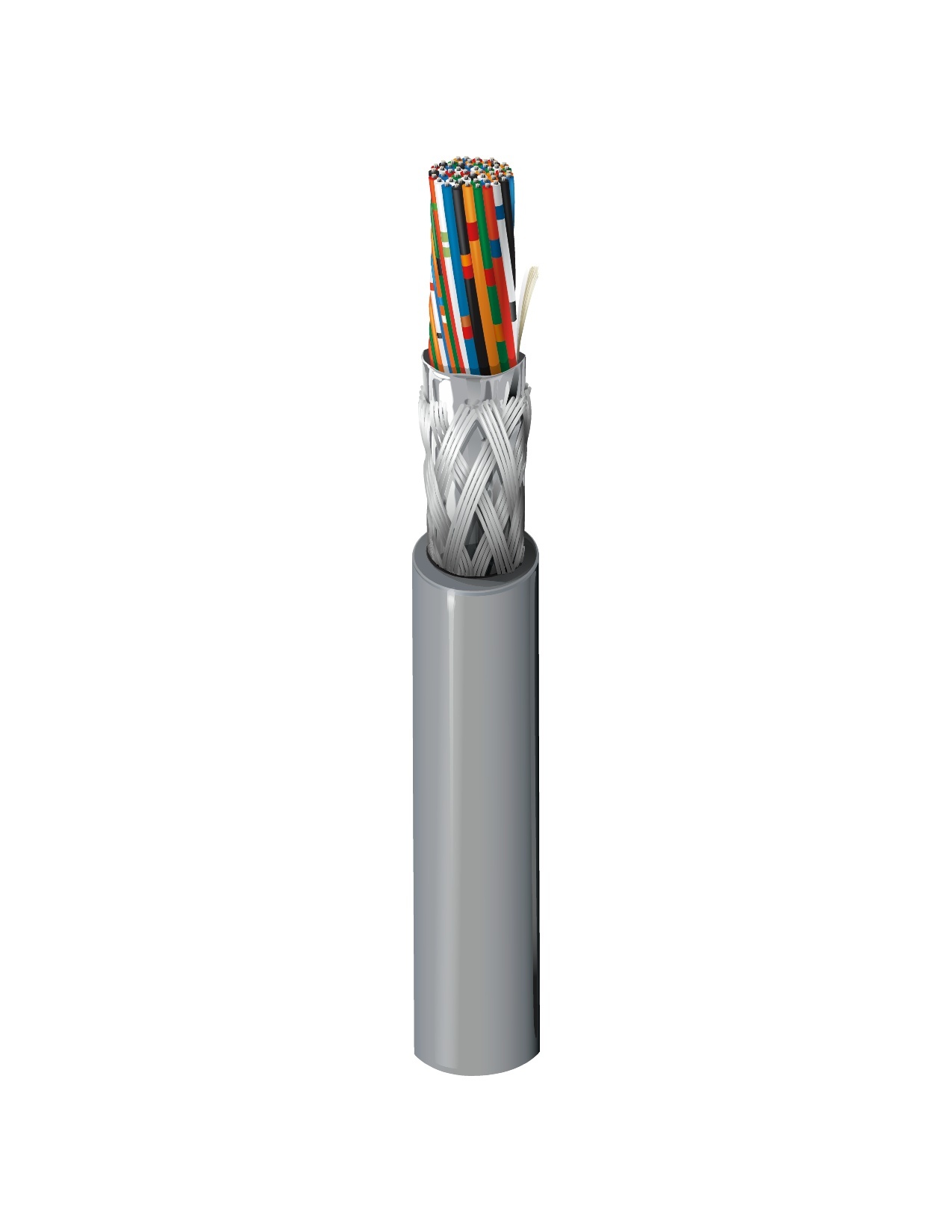

Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

9950 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9950 060100	Chrome	612825265061	C	Order online
9950 0601000	Chrome	612825265078	C	Order online
9950 060500	Chrome	612825265085	C	Order online

Specifications

Product Overview

Suitable Applications	RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, ...); Line Level Audio; Panel Wiring

Construction Details

Overall Cable Diameter (Nominal)	0.555 in (14.1 mm)

Conductor

Element	Conductor(s)
No. of Elements	50
Size	22 AWG
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	SR-PVC - Polyvinyl Chloride (Semi-Rigid)
Nom. Thickness	0.011 in (0.28 mm)
Nom. Insulation Diameter	0.051 in (1.3 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	65%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.050 in (1.3 mm)
Nom. Diameter	0.555 in (14.1 mm)

Electrical Characteristics

Nom Outer Shield DCR	2.3 Ohm/1000ft (7.5 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	14.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	35 pF/ft (110 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	63 pF/ft (210 pF/m)
Max. Current	1.1 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Max. Pull Tension	477 lbs (216 kg)
Bulk Cable Weight	219 lbs/1000ft

Temperature

UL Temperature	60°C (UL CMG);80°C (UL AWM 2464)
Operating	-30°C to +80°C

Bend Radius

Stationary Min.	5.8 in (150 mm)
Installation Min.	5.8 in (150 mm)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 2464
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
