Product Number: 9935

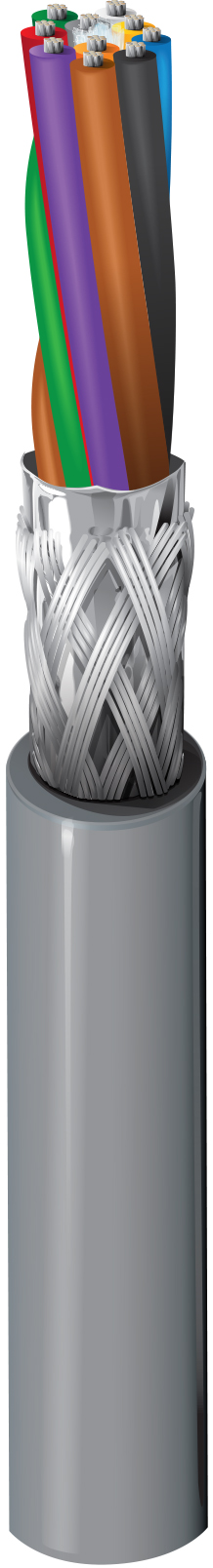

RS232/423 Low Cap, #24-10c, FPE, O/A Foil+Braid, PVC Jkt, CM

Computer EIA RS-232/423 Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), drain wire, PVC jacket.

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

9935 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
9935 060100	Chrome	612825264514	Order online
9935 0601000	Chrome	612825264521	Order online
9935 060500	Chrome	612825264538	Order online

Specifications

Product Overview

Suitable Applications	RS-232 Extended Distance & RS-423 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, ...); Line Level Audio; Panel Wiring

Construction Details

Overall Cable Diameter (Nominal)	0.290 in (7.37 mm)

Conductor

Element	Conductor(s)
No. of Elements	10
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.0125 in (0.318 mm)
Color Code	Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Braid	Tinned Copper (TC)	65%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.035 in (0.89 mm)
Nom. Diameter	0.290 in (7.37 mm)

Electrical Characteristics

Nom Outer Shield DCR	3.18 Ohm/1000ft (10.4 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	24 Ohm/1000ft (79 Ohm/km)
Nom. Capacitance Cond-to-Cond	12 pF/ft (39 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	22 pF/ft (72 pF/m)
Nom. Velocity of Prop.	78%
Max. Current	1.5 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Max. Pull Tension	90 lbs (41 kg)
Bulk Cable Weight	50 lbs/1000ft (74 kg/km)

Temperature

UL Temperature	60°C (UL CM);80°C (UL AWM 2464)
Operating	-30°C to +80°C

Bend Radius

Stationary Min.	3.5 in (89 mm)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire	UL1685 UL Loading, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2919
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Datalene® insulation features include a low dielectric constant and a low dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.
