Product Number: 9890

Electronic, 10 C #20 Sol TC, PO Ins, OS, PO Jkt

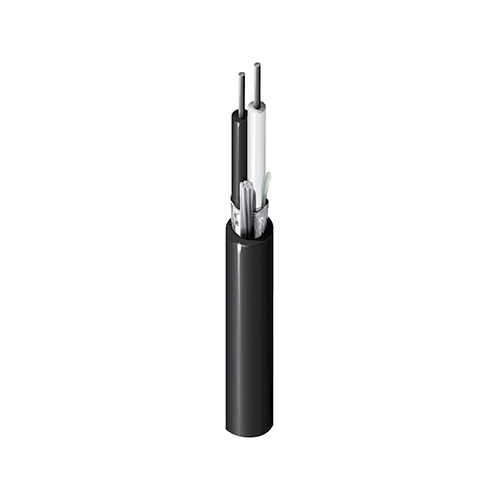

Name: Belden 9890
Brand: Belden
SKU: 9890

Electronic, 10 Conductor 20AWG (Solid) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PO Outer Jacket

Ships from and sold by A5 IT.

Part numbers

9890 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9890 0101000	Black	612825260042	C	Order online
9890 010500	Black	612825260059	C	Order online

Suitable Applications	direct burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications

Outer Jacket1 Table Notes	HDPE
Overall Cable Diameter (Nominal)	0.31 in

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.013 in (0.33 mm)
Nom. Insulation Diameter	0.058 in (1.5 mm)
Color Code	Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray

Nom Outer Shield DCR	11 Ohm/1000ft (36 Ohm/km)

Nom. Conductor DCR	18.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	42 pF/ft (140 pF/m)
Max. Current	2.7 Amps per Conductor at 25oC

Voltage Rating	350 V

Max. Pull Tension	137.8 lbs (62.51 kg)
Bulk Cable Weight	60 lbs/1000ft

Operating	-40°C To +80°C

Stationary Min.	3.1 in (79 mm)
Installation Min.	3.1 in

European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
