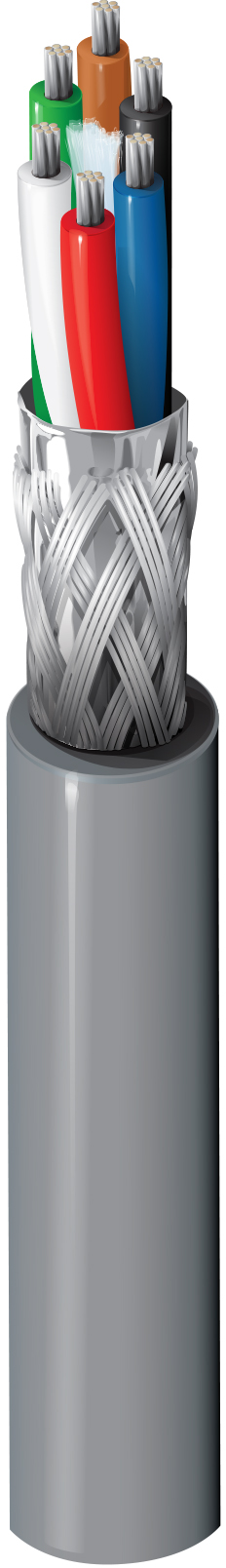

Product Number: 9791

RS232/423 Low Cap, #28-6c, FPO, O/A Foil+Braid, PVC Jkt, CL2

Computer EIA RS-232/423 Cable, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% Coverage) + tinned copper braid shield (65% Coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

9791 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9791 060500	Chrome	Reel	500 ft	612825258674	C	Order online
9791 0601000	Chrome	Reel	1,000 ft	612825258667	C	Order online

Specifications

Product Overview

Suitable Applications	rs-232 extended distance applications; rs-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.225 in

Conductor

Element	Conductor(s)
No. of Elements	6
Size	28 AWG
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.015 in (0.38 mm)
Nom. Insulation Diameter	0.044 in (1.1 mm)
Color Code	Black, White, Red, Green, Brown, Blue

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	28 AWG (7x36) TC
Braid	Tinned Copper (TC)	65%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.035 in (0.89 mm)
Nom. Diameter	0.225 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	8.2 Ohm/1000ft (27 Ohm/km)

Electricals

Nom. Conductor DCR	72.8 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	12 pF/ft (39 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	22 pF/ft (72 pF/m)
Nom. Characteristic Impedence	100 Ohm
Nom. Velocity of Prop.	78%
Max. Current	2.1 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CL2), 30 V AC (UL AWM 2919)

Mechanical Characteristics

Max. Pull Tension	14.7 lbs (6.67 kg)
Bulk Cable Weight	26 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-30°C To +80°C

Bend Radius

Stationary Min.	2.25 in (57.2 mm)
Installation Min.	2.25 in

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL 1685 UL Loading
NEC / UL Compliance	Article 725, CL2
AWM Compliance	AWM 2919
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Datalene® insulation features include a low dielectric constant and a low dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.
