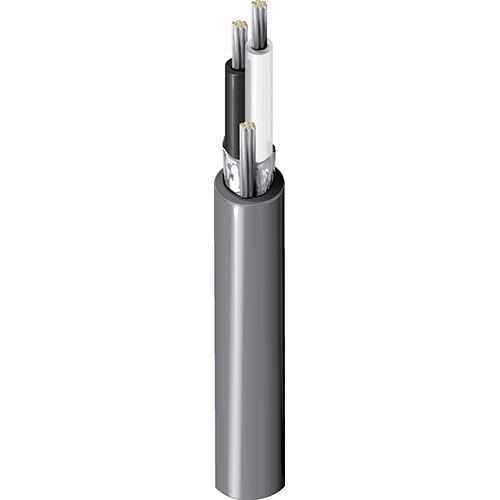

GreenChoice, (1 pr) 18 AWG (7x26) TC, PP/LSZH, CMG
One 18 AWG pair stranded (7x26) tinned copper conductors, twisted pairs, polypropylene insulation, low smoke zero-halogen jacket.
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Audio, Control & Instrumentation cable; For data transmission applications |
|---|
Physical Characteristics (Overall)
| Conductor Count | 2 |
|---|
Conductor
| Stranding | 7x30 |
|---|---|
| Material | TC - Tinned Copper |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nominal Diameter | 0.073 in |
| Nominal Wall Thickness | 0.013 in |
Color Chart
| Color |
|---|
| Black |
| Red |
Outer Jacket
| Material | PO - Polyolefin |
|---|---|
| Nominal Diameter | 0.210 in |
| Nominal Wall Thickness | 0.032 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 7.06 Ohm/1000ft |
|---|
Current
| Max. Recommended Current [A] | 14 Amps per Conductor at 30oC |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Operating Temperature Range | -20C° to 80°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 22 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 42 lbs |
| Minimum Bend Radius During Installation | 2.1 in |
Standards
| NEC/(UL) Compliance | CMG |
|---|---|
| CEC/C(UL) Compliance | CMG |
History
| Update and Revision | Revision Number: 0.59 Revision Date: 07-15-2025 |
|---|
