Product Number: 9637

RS-232, #28-25c, SR-PVC, O/A Foil+Braid, PVC Jkt, CL2

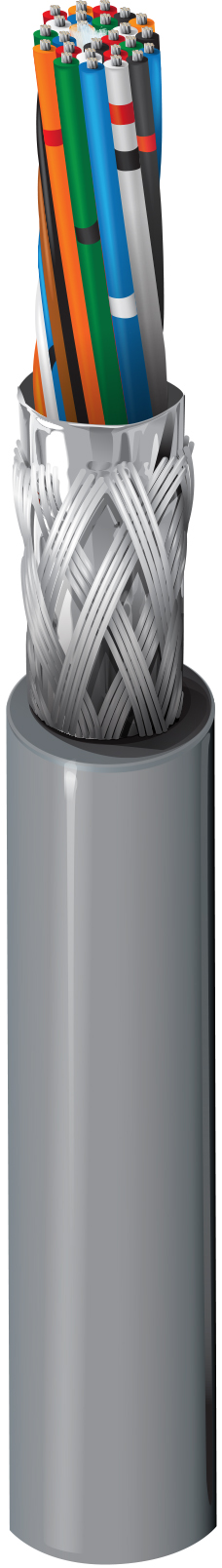

Computer EIA RS-232 Cable, 28 AWG stranded (7x36) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% Coverage) + tinned copper braid shield (65% Coverage), PVC jacket.

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9637 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9637 0601000	Chrome	Reel	1,000 ft	612825256854	C	Order online

Specifications

Product Overview

Suitable Applications	rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.305 in

Conductor

Element	Conductor(s)
No. of Elements	25
Size	28 AWG
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	SR-PVC - Polyvinyl Chloride (Semi-Rigid)
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.035 in (0.89 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	66%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.035 in (0.89 mm)
Nom. Diameter	0.305 in

Electrical Characteristics

Nom Outer Shield DCR	8.1 Ohm/1000ft (27 Ohm/km)

Electricals

Nom. Conductor DCR	70.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	30 pF/ft (98 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	50 pF/ft (160 pF/m)
Max. Current	0.15 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	52.5 lbs (23.8 kg)
Bulk Cable Weight	54 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-20°C To +80°C

Bend Radius

Stationary Min.	3.05 in (77.5 mm)
Installation Min.	3.05 in

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL 1685 UL Loading
NEC / UL Compliance	Article 725, CL2
AWM Compliance	AWM 2464, AWM I B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
