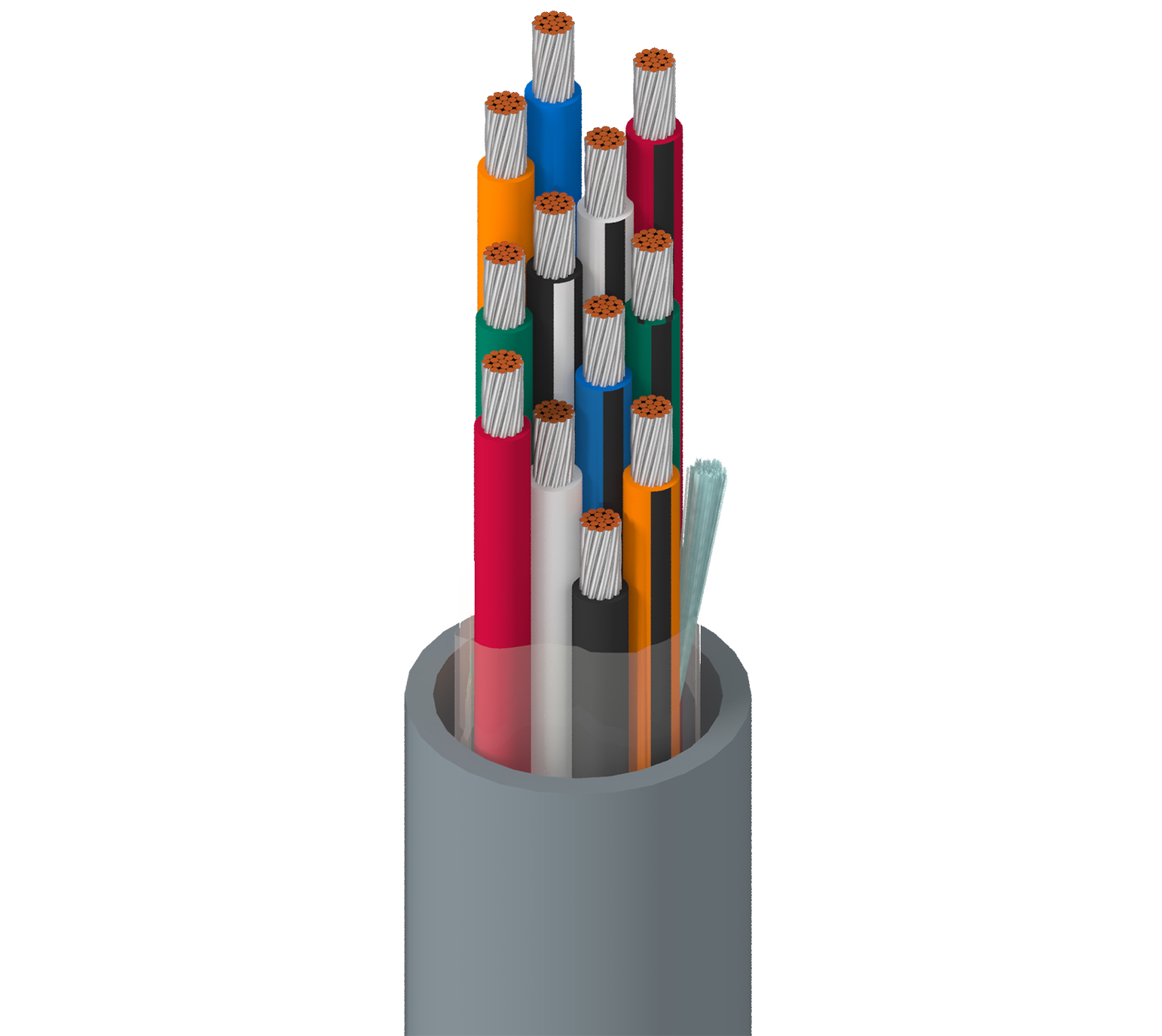

Electronic, 5 C #14 Str TC, PVC Ins, PVC Jkt
Electronic, 5 Conductor 14AWG (19x27) Tinned Copper, PVC Insulation, PVC Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9623 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9623 0601000 | Chrome | 612825256786 | C | Order online |
| 9623 060500 | Chrome | 612825256793 | C | Order online |
Specifications
Product Overview
| Suitable Applications | up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.573 in (14.6 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 5 |
| Size | 14 AWG |
| Stranding | 19x27 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Insulation Diameter | 0.166 in (4.22 mm) |
| Color Code | Black, White, Red, Green, Orange |
Outer Jacket
| Separator | PP - Polypropylene Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.060 in (1.5 mm) |
| Nom. Diameter | 0.573 in (14.6 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 2.8 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 18 pF/ft (59 pF/m) |
| Max. Current | 7.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 237 lbs (108 kg) |
|---|---|
| Bulk Cable Weight | 183 lbs/1000ft |
Temperature
| Operating | -20°C To +80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1581 (VW-1), VW-1 |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.487 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
