Product Number: 9618

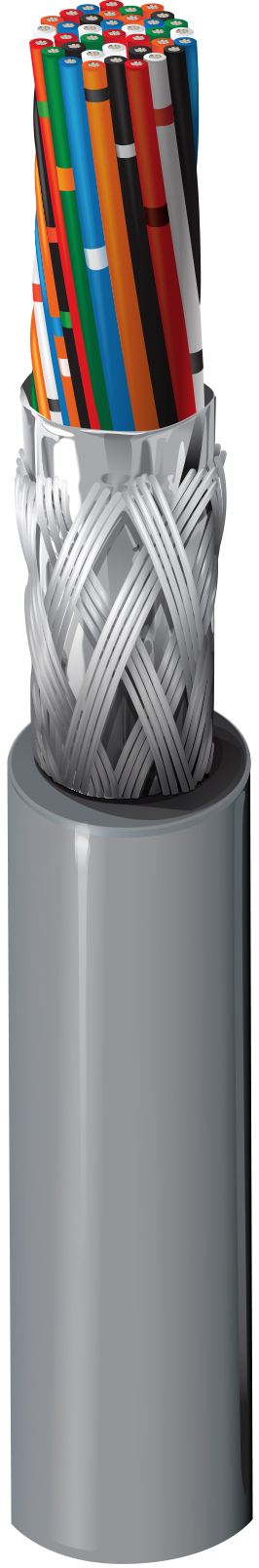

RS232, #24-37c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

9618 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9618 060100	Chrome	Reel	100 ft	612825256588	Order online
9618 060500	Chrome	Reel	500 ft	612825256601	Order online
9618 0601000	Chrome	Reel	1,000 ft	612825256595	Order online

Specifications

Product Overview

Suitable Applications	RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, ...); Line Level Audio; Panel Wiring

Construction Details

Overall Cable Diameter (Nominal)	0.411 in (10.4 mm)

Conductor

Element	Conductor(s)
No. of Elements	37
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	SR-PVC - Polyvinyl Chloride (Semi-Rigid)
Nom. Thickness	0.011 in (0.28 mm)
Nom. Insulation Diameter	0.044 in (1.1 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	65%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.040 in (1.0 mm)
Nom. Diameter	0.411 in (10.4 mm)

Electrical Characteristics

Nom Outer Shield DCR	4.4 Ohm/1000ft (14 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	25 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	30 pF/ft (98 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	55 pF/ft (180 pF/m)
Max. Current	1 Amp per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Max. Pull Tension	241 lbs (109 kg)
Bulk Cable Weight	122 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-30°C to +80°C

Bend Radius

Stationary Min.	4.1 in (100 mm)
Installation Min.	4.1 in (100 mm)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 2464
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
