Product Number: 9583

Electronic, 2 C #12 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR

Name: Belden 9583
Brand: Belden
SKU: 9583

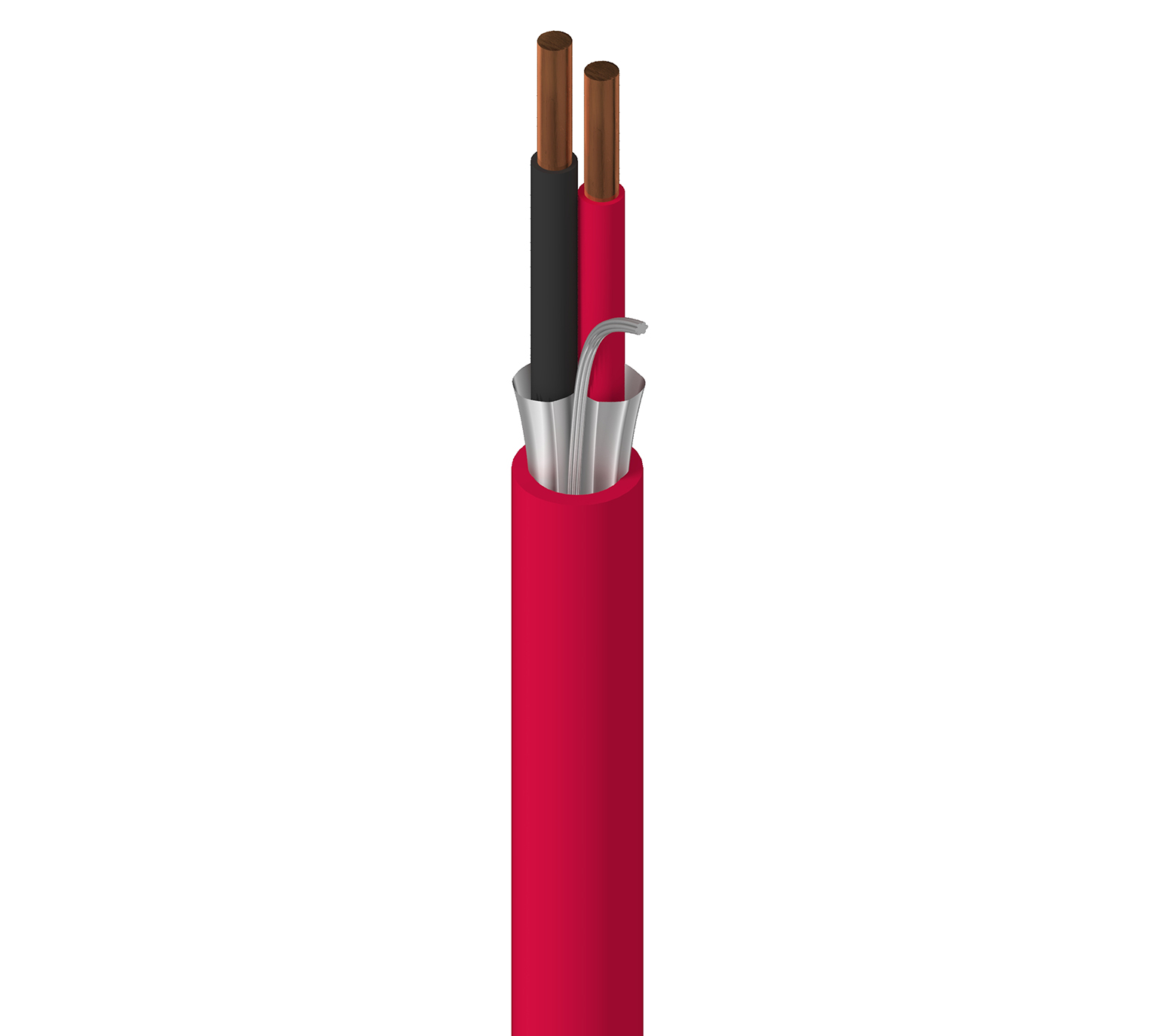

Electronic, 2 Conductor 12AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR

Ships from and sold by A5 IT.

Part numbers

9583 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9583 0021000	Red	612825256250	C	Order online

Suitable Applications	fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...)

Overall Cable Diameter (Nominal)	0.343 in

Nom Outer Shield DCR	3.5 Ohm/1000ft (11 Ohm/km)

Element	Pair(s)
Nom. Conductor DCR	1.6 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	86 pF/ft (280 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	160 pF/ft (520 pF/m)
Nom. Inductance	0.18 μH/ft (0.59 μH/m)
Max. Current	21 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	197 lbs (89.4 kg)
Bulk Cable Weight	80 lbs/1000ft

UL Temperature	105°C
Operating	-20°C To +75°C

Stationary Min.	5.14 in (131 mm)
Installation Min.	5.14 in

Environmental Suitability	Indoor, Sunlight Resistance
Flammability / Reaction to Fire	UL1666 Riser, FT4
NEC / UL Compliance	Article 760, FPLR
CEC / C(UL) Compliance	FAS105.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	California State Fire Marshall

Notes	This cable passes the UL 70, 000 BTU Flame Test (comparable to the IEEE 383 Flame Test) and are listed by the California State Fire Marshall. Component Recognized UL 2464, 300V 80C.
