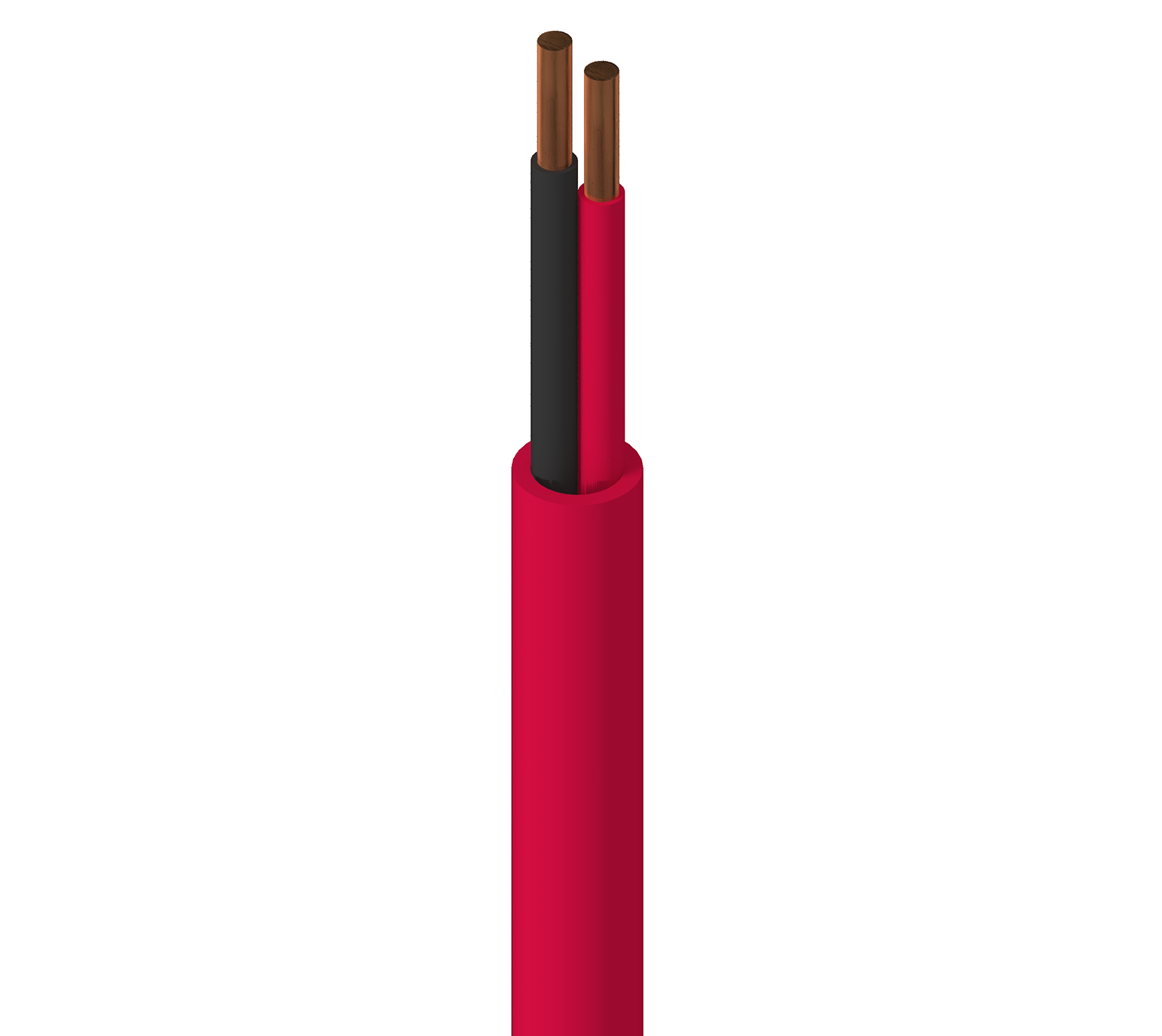

Electronic, 2 C #14 Sol BC, PVC Ins, Red PVC Jkt, FPLR
Electronic, 2 Conductor 14AWG (Solid) Bare Copper, PVC Insulation, Red PVC Outer Jacket, FPLR
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9580 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC/EAN | Footnote | Order |
|---|---|---|---|---|
| 9580 0021000 | Red | 612825256212 | C | Order online |
| 9580.00305 | Red | 8719605022370 | — | Order online |
| 9580.K0305 | Red | 8719605022387 | — | Order online |
Specifications
Product Overview
| Suitable Applications | fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...) |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 |
| Stranding | Solid |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.022 in (0.56 mm) |
| Nom. Insulation Diameter | 0.20 in (5.1 mm) |
| Color Code | Black, Red |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.042 in (1.1 mm) |
| Nom. Diameter | 0.303 in (7.70 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.62 Ohm/1000ft (8.60 Ohm/km) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 27 pF/ft (89 pF/m) |
| Nom. Inductance | 0.18 μH/ft (0.59 μH/m) |
| Max. Current | 18 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 124 lbs (56.2 kg) |
|---|---|
| Bulk Cable Weight | 50 lbs/1000ft (74 kg/km) |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -40°C To +105°C |
Bend Radius
| Stationary Min. | 2.42 in (61.5 mm) |
|---|---|
| Installation Min. | 2.42 in (61.5 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor |
|---|---|
| Flammability / Reaction to Fire | UL1666 Riser |
| NEC / UL Compliance | Article 760, FPLR |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | FAS105. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
Product Notes
| Notes | This cable passes the UL 70, 000 BTU Flame Test (comparable to the IEEE 383 Flame Test) and are listed by the California State Fire Marshall. Component Recognized UL 2464, 300V 80░C. |
|---|
History
| Update and Revision | Revision Number: 0.575 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
