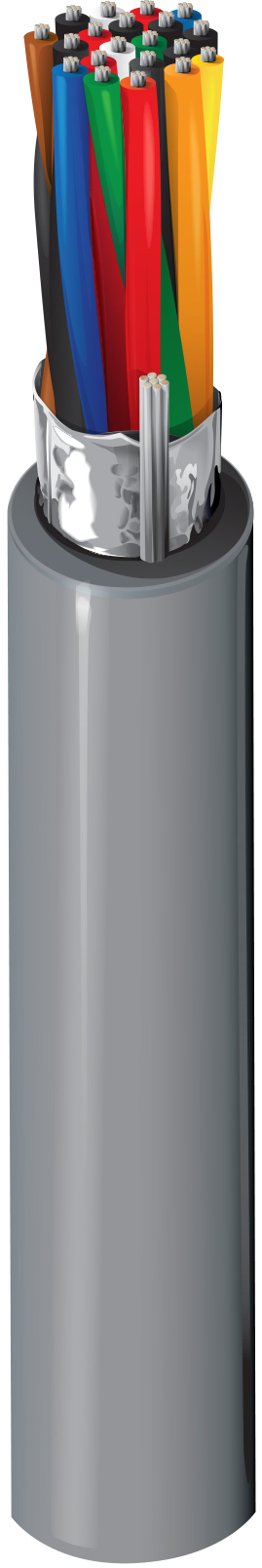

Product Number: 9510NH

RS-232, 10PR #24 Str TC, PO ins, OS, LSZH Jkt, 300V

10-Pair, 24 AWG stranded (7x32) TC conductors, PE insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire, LSZH jacket, Flame resistance IEC 60332-3C

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9510NH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
9510NH.00500	Chrome	Reel	500 m	8719605021656	Order online

Specifications

Product Overview

Suitable Applications	Instrumentation and computer cable; For EIA RS-232 data transmission applications

Construction Details

Conductor

Size	24
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Material	PE - Polyethylene
Nom. Insulation Diameter	1.12 mm (0.0441 in)
Color Code	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.85 mm (0.033 in)
Nom. Diameter	9.4 mm (0.37 in)

Electrical Characteristics

Nom Outer Shield DCR	54.1 Ohm/km (16.5 Ohm/1000ft)

Electricals

Nom. Conductor DCR	78.7 Ohm/km (24.0 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	98.4 pF/m (30.0 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	164 pF/m (50.0 pF/ft)
Nom. Characteristic Impedence	75 Ohm
Max. Current	1.1 Amps per Conductor

Voltage

Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	400 N (90 lbf)

Temperature

Installation	-15°C To +80°C
Storage	-45°C To +80°C

Bend Radius

Installation Min.	94 mm (3.7 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor - Euroclass Eca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404
Flammability / Reaction to Fire	IEC 60332-3-24, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
