Product Number: 9502ELW

RS-232, 2PR #24 Str TC, LSZH ins, OS, LSZH Jkt, 300 V,Cca

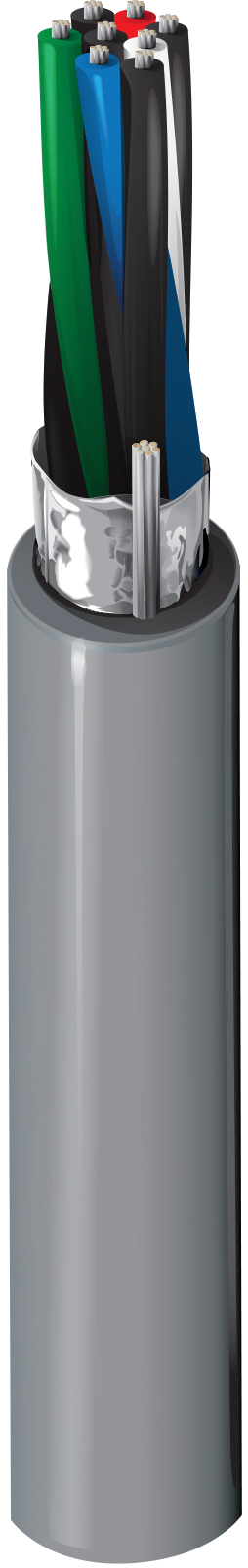

2-Pair, 24 AWG stranded (7x32) TC conductors, LSZH insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire, LSZH jacket, Flame resistance IEC 60332-3C, CPR Cca

Availability: Global
Status: Capability

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Instrumentation and computer cable; For EIA RS-232 data transmission applications

Physical Characteristics (Overall)

Conductor Count	4

Conductor

AWG	24
Stranding	7x32
Material	TC - Tinned Copper
No. of Pairs	2

Insulation

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter	1.12 mm
Diameter +/- Tolerance	0.05 mm

Color Chart

Number	Color
Pair 1	Black & Red
Pair 2	Black & White

Outer Shield

Type	Tape
Material	Bi-Laminate (Alum+Poly)
Material Trade Name	Beldfoil®
Drainwire Material	TC - Tinned Copper
Drainwire AWG	AWG24/7

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nominal Diameter	6.0 mm
Nominal Wall Thickness	0.9 mm

Construction and Dimensions

Cabling

Description	2 pairs twisted to cable core

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	78.7 Ohm/km
Nominal Outer Shield DCR	55.8 Ohm/km

Capacitance

Nom. Capacitance Conductor to Conductor	98.4 pF/m
Nom. Capacitance Conductor to Other Conductor to Shield	164 pF/m

Impedance

Frequency [MHz]	N/A

Current

Element	Conductor(s)
Max. Recommended Current [A]	1.76 Amps per Conductor

Voltage

Voltage Rating [V]	300 V

Temperature Range

Installation Temperature Range	-15°C To +70°C
Storage Temperature Range	-30°C To +70°C
Operating Temp Range (Flexible Install)	-15°C To +70°C
Operating Temp Range (Fixed Install)	-30°C To +70°C

Mechanical Characteristics

Oil Resistance	IEC 60811-404
Maximum Recommended Pulling Tension	100 N
Minimum Bend Radius During Installation	58 mm

Standards

CPR Euroclass	Cca-s1,d1,a1
CENELEC Compliance	EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space	Indoor/Outdoor - Euroclass Cca

Suitability

Suitability - Burial	No
Suitability - Indoor	Yes
Suitability - Non-Halogenated	Yes
Suitability - Oil Resistance	IRM 902 70°Cx4h
Suitability - Outdoor	Yes
Suitability - Sunlight Resistance	Yes - UL 1581 sec 1200 Black Only

Flammability, LS0H, Toxicity Testing

IEC Flammability	IEC 60332-1-2
IEC 60754-1 - Halogen Amount	Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity	2.5 μS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH	4.3
IEC 61034-2 - Smoke Density Min. Transmittance	60%

Product Notes

Notes

This is a preliminary Technical Design Specification (TDS) which is subject to modification throughout the prototyping phase. The minimum business quantity to offer is 6km for the first order. This product will have Chrome as standard color and 305mt or 500mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 9502NH plus extra 6-7 weeks. Please liaise with your Belden representative for confirmation.
