Electronic, 2 C #20 Str TC, PO Ins, OS, PVC Jkt, CM

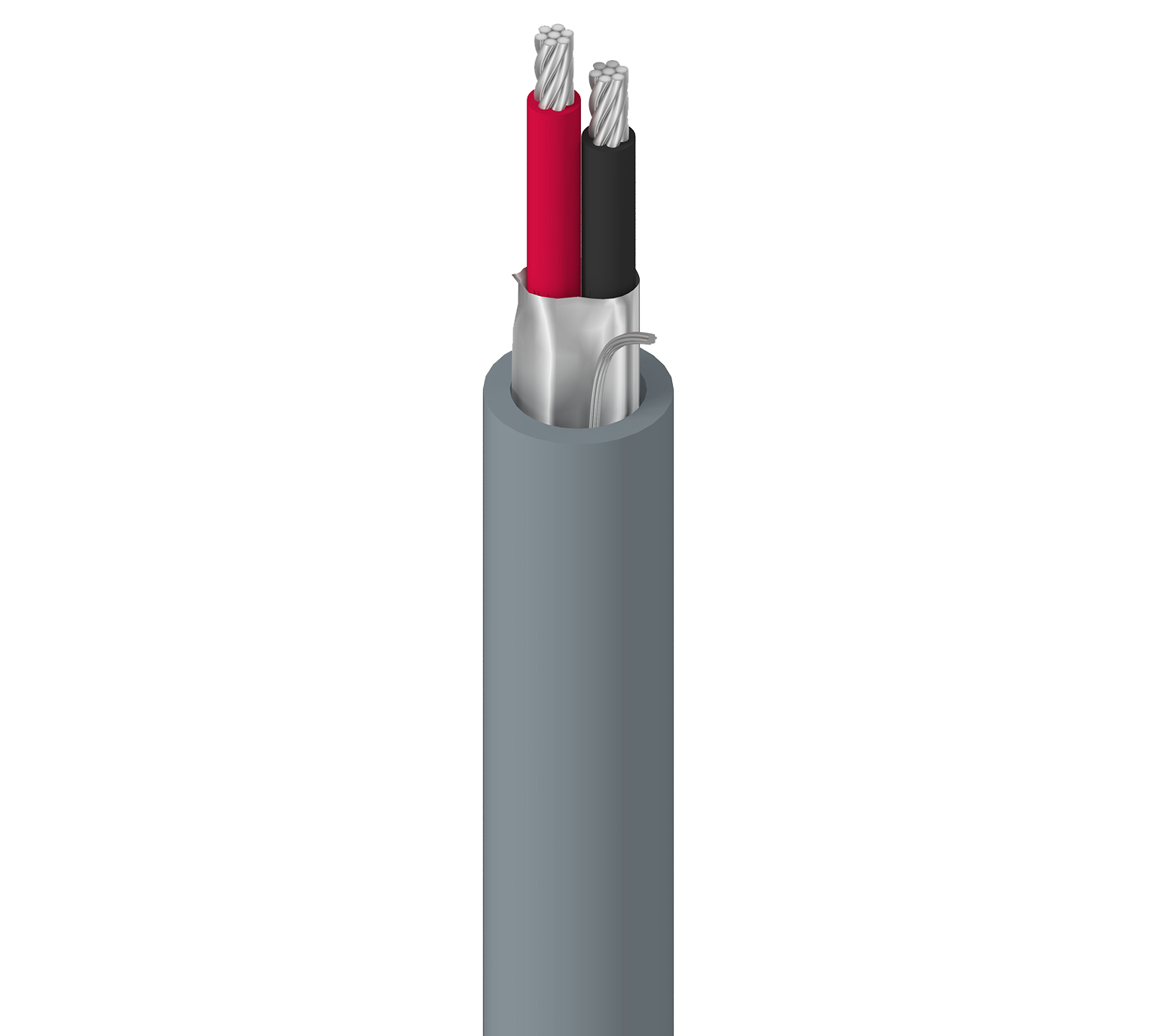

Electronic, 2 Conductor 20AWG (7x28) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9464 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9464 060U1000 | Chrome | 612825253723 | Order online |
| 9464 060U500 | Chrome | 612825253730 | Order online |
Specifications
Product Overview
| Suitable Applications | for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; computer communication; panel wiring |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 20 |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Insulation Diameter | 0.70 in (18 mm) |
| Color Code | Black, White |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 20 AWG (7x28) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.214 in (5.44 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 7.51 Ohm/1000ft (24.6 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 11.1 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 27 pF/ft (89 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 49 pF/ft (160 pF/m) |
| Nom. Characteristic Impedence | 56 Ohm |
| Nom. Inductance | 0.18 μH/ft (0.59 μH/m) |
| Max. Current | 3.9 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 31.2 lbs (14.2 kg) |
|---|---|
| Bulk Cable Weight | 30 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C To +60°C |
Bend Radius
| Stationary Min. | 2.14 in (54.4 mm) |
|---|---|
| Installation Min. | 2.14 in (54.4 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2092 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is on the inside of foil shield. |
|---|
History
| Update and Revision | Revision Number: 0.521 Revision Date: 09-07-2025 |
|---|
