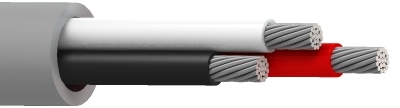

SpaceMakerTM, 3 C #20 Str TC, PO Ins, PVC Jkt, AWM 2937
SpaceMakerTM, 3 Conductor 20AWG (26x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
9443MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9443MN 006100 | Blue, Light | 612825392279 | Order online |
| 9443MN 0061000 | Blue, Light | 612825392361 | Order online |
| 9443MN 008100 | Gray | 612825392286 | Order online |
| 9443MN 0081000 | Gray | 612825392378 | Order online |
| 9443MN 004100 | Yellow | 612825392262 | Order online |
| 9443MN 0041000 | Yellow | 612825392347 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.155 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 20 AWG |
| Stranding | 26x34 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.010 in (0.25 mm) |
| Nom. Insulation Diameter | 0.057 in mm |
| Color Code | Black, White, Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Diameter | 0.155 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 10.4 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 15.7 pF/ft (51.5 pF/m) |
| Nom. Characteristic Impedence | 47 Ohm |
| Nom. Inductance | 0.026 μH/ft (0.085 μH/m) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 39 lbs (18 kg) |
|---|---|
| Bulk Cable Weight | 26 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 0.620 in (15.7 mm) |
|---|---|
| Installation Min. | 0.620 in |
| Flexing Min. | 1.550 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | FT2 |
| CPR Compliance | CPR Euroclass: Eca |
| AWM Compliance | AWM 2937 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.365 Revision Date: 09-07-2025 |
|---|
