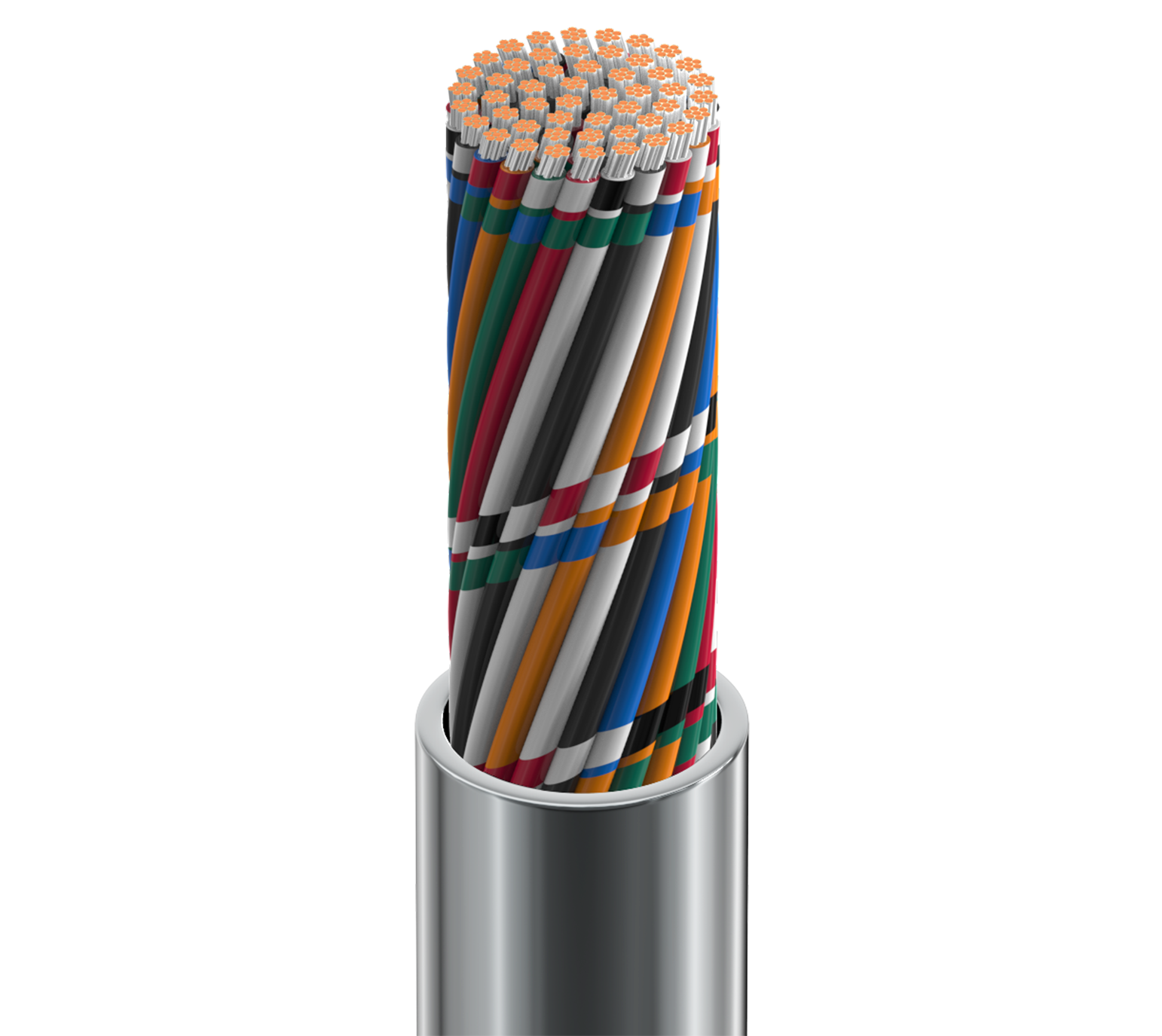

Electronic, 50 C #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 50 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9434 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9434 0601000 | Chrome | 612825245933 | C | Order online |
| 9434 060500 | Chrome | 612825245940 | C | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.500 in (12.7 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 50 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.011 in (0.28 mm) |
| Nom. Insulation Diameter | 0.050 in (1.3 mm) |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.500 in (12.7 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 15.6 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 34 pF/ft (110 pF/m) |
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. Current | 1.2 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V (CMG), 150 V (UL AWM 2576) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 455 lbs (206 kg) |
|---|---|
| Bulk Cable Weight | 187 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C to +80°C |
Bend Radius
| Stationary Min. | 5.0 in (130 mm) |
|---|---|
| Installation Min. | 5.0 in (130 mm) |
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2576 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.506 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
