Product Number: 9430MN

SpaceMakerTM, 7 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937

Name: Belden 9430MN
Brand: Belden
SKU: 9430MN

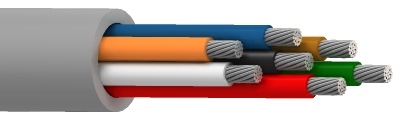

SpaceMakerTM, 7 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937

Ships from and sold by A5 IT.

Part numbers

9430MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9430MN 006100	Blue, Light	Reel	100 ft	612825388746	Order online
9430MN 0061000	Blue, Light	Reel	1,000 ft	612825388753	Order online
9430MN 008100	Gray	Reel	100 ft	612825388760	Order online
9430MN 0081000	Gray	Reel	1,000 ft	612825388777	Order online
9430MN 004100	Yellow	Reel	100 ft	612825388722	Order online
9430MN 0041000	Yellow	Reel	1,000 ft	612825388739	Order online

Overall Cable Diameter (Nominal)	0.182 in.

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.050 in (1.3 mm)
Color Code	Black, White, Red, Dark Green, Brown, Dark Blue, Orange

Material	No Shield

Nom. Conductor DCR	18.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	16.6 pF/ft (54.5 pF/m)
Nom. Characteristic Impedence	51 Ohm
Nom. Inductance	0.031 μH/ft (0.10 μH/m)
Max. Current	2.1 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	66 lbs (30 kg)
Bulk Cable Weight	25 lbs/1000ft

UL Temperature	80°C
Operating	-20°C To +80°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	FT2
AWM Compliance	AWM 2937
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
