Product Number: 9423MN

SpaceMakerTM, 9 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937

Name: Belden 9423MN
Brand: Belden
SKU: 9423MN

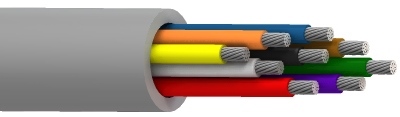

SpaceMakerTM, 9 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937

Ships from and sold by A5 IT.

Part numbers

9423MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9423MN 006100	Blue, Light	Reel	100 ft	612825391913	Order online
9423MN 0061000	Blue, Light	Reel	1,000 ft	612825391920	Order online
9423MN 008100	Gray	Reel	100 ft	612825391937	Order online
9423MN 0081000	Gray	Reel	1,000 ft	612825391944	Order online
9423MN 004100	Yellow	Reel	100 ft	612825391890	Order online
9423MN 0041000	Yellow	Reel	1,000 ft	612825391906	Order online

Overall Cable Diameter (Nominal)	0.213 in.

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.050 in (1.3 mm)
Color Code	Black, White, Red, Dark Green, Brown, Dark Blue, Orange, Yellow, Purple

Material	No Shield

Nom. Conductor DCR	18.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	16.6 pF/ft (54.5 pF/m)
Nom. Characteristic Impedence	51 Ohm
Nom. Inductance	0.031 μH/ft (0.10 μH/m)
Max. Current	2.1 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	85.5 lbs (38.8 kg)
Bulk Cable Weight	32 lbs/1000ft

UL Temperature	80°C
Operating	-20°C To +80°C

Environmental Suitability	Indoor
Flammability / Reaction to Fire	FT2
AWM Compliance	AWM 2937
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
