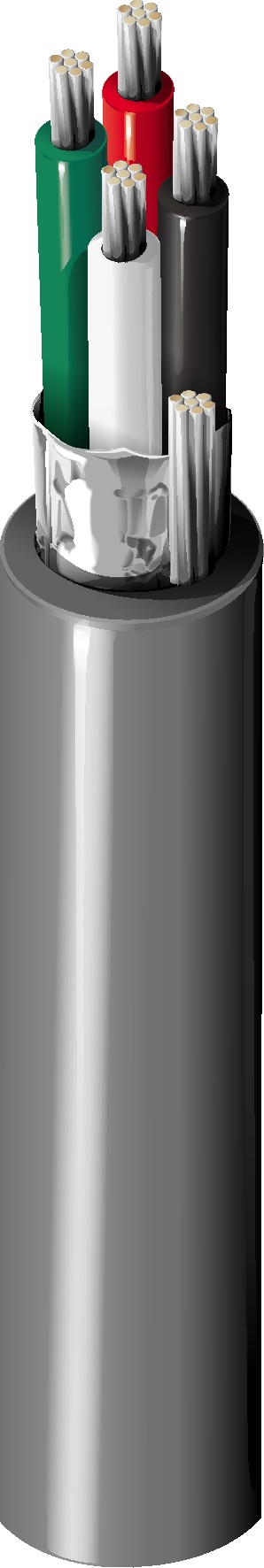

Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG
Electronic, 4 Conductor 18AWG (19x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9418ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 9418ZH 0101000 | Black | 612825382218 | Order online |
| 9418ZH 010500 | Black | 612825382225 | Order online |
Specifications
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 18 |
| Stranding | 19x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Thickness | 0.011 in (0.28 mm) |
| Nom. Insulation Diameter | 0.66 in (17 mm) |
| Color Code | Red, Green, White, Black |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.25 in |
Electrical Characteristics
| Nom Outer Shield DCR | 6.85 Ohm/1000ft (22.5 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 6.4 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 24.0 pF/ft (78.7 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 44.0 pF/ft (144 pF/m) |
| Max. Current | 5 Amps per Conductor at 20oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 80 lbs (36 kg) |
|---|---|
| Bulk Cable Weight | 42 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 2.5 in (64 mm) |
|---|---|
| Installation Min. | 2.5 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL1685 FT4 loading |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21307 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.360 Revision Date: 09-07-2025 |
|---|
