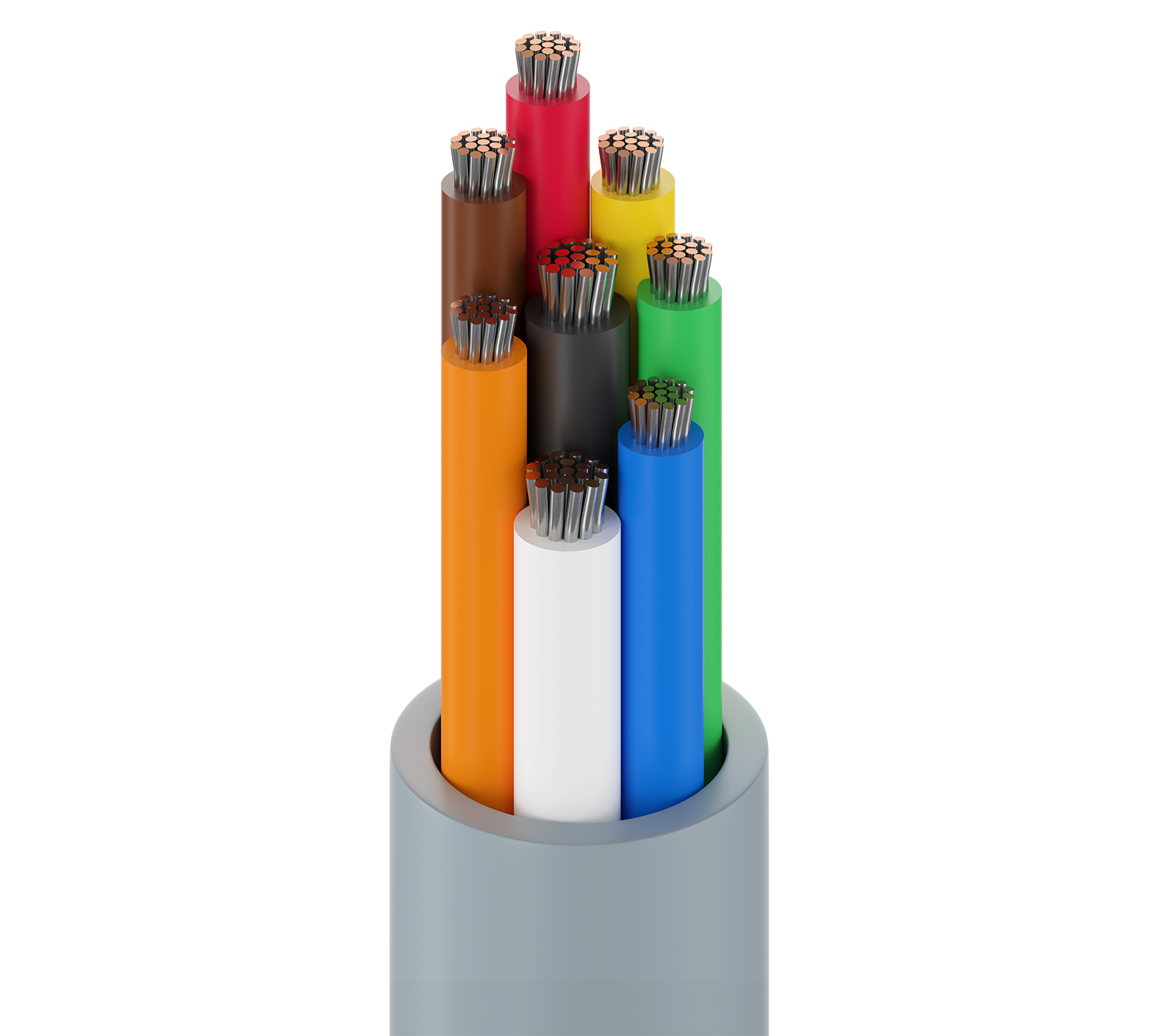

Product Number: 9405

Electronic, 2+6 C #18+16 Str TC, PVC Ins, PVC Jkt, CM

Name: Belden 9405
Brand: Belden
SKU: 9405

Electronic, 2+6 Conductor 18+16AWG (19x30+19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CM

Ships from and sold by A5 IT.

Part numbers

9405 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9405 0601000	Chrome	612825240013	C	Order online

Suitable Applications	low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; panel wiring

Overall Cable Diameter (Nominal)	0.345 in (8.76 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	6	18 AWG	19x30	TC - Tinned Copper
Conductor(s)	2	16 AWG	19x28	TC - Tinned Copper

Element	Material	Nom. Thickness	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.019 in (0.48 mm)	Brown, Red, Yellow, Blue, Orange, Green
Conductor(s)	PVC - Polyvinyl Chloride	0.019 in (0.48 mm)	Black, White

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	6.8 Ohm/1000ft (22 Ohm/km)	4 Amps per Conductor at 25oC
Conductor(s)	4.0 Ohm/1000ft (13 Ohm/km)	4.9 Amps per Conductor at 25oC

UL Voltage Rating	300 V (CM, UL AWM 2464)

Max. Pull Tension	181 lbs (82.1 kg)
Bulk Cable Weight	87 lbs/1000ft (130 kg/km)

UL Temperature	80°C (UL AWM 2464)
Operating	-20°C to +80°C

Stationary Min.	3.5 in (89 mm)
Installation Min.	3.5 in (89 mm)

Environmental Suitability	Indoor, Outdoor, UV Resistance
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2464
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
