Product Number: 89842

RS485, 2 Pr #24 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

Name: Belden 89842
Brand: Belden
SKU: 89842

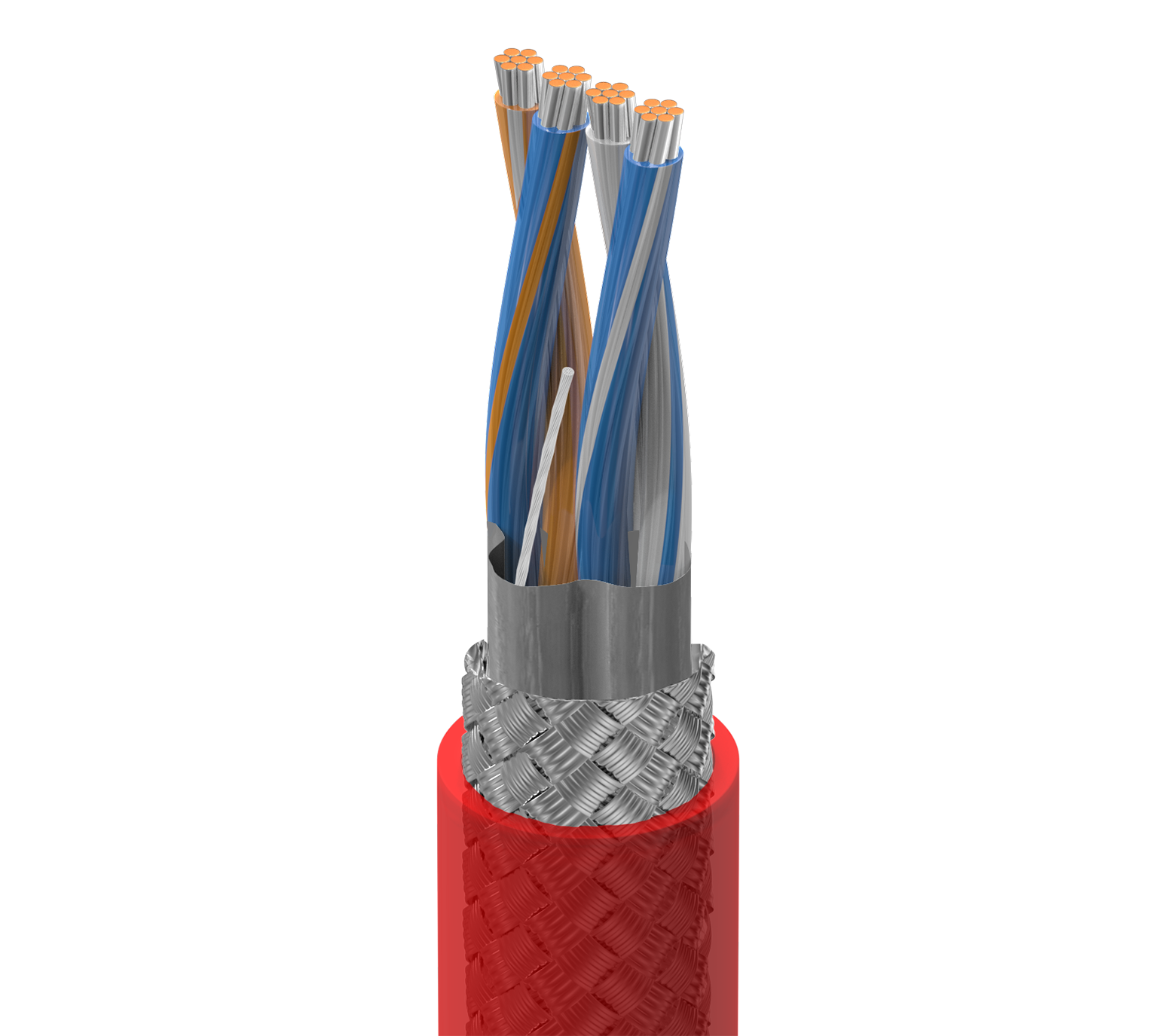

RS-485, 2 Pair 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, FEP Outer Jacket, CMP

Ships from and sold by A5 IT.

Part numbers

89842 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
89842 0021000	Red	612825221333	C	Order online
89842 002500	Red	612825221340	C	Order online

Suitable Applications	RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, ...); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Overall Cable Diameter (Nominal)	0.345 in (8.76 mm)

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Thickness	0.023 in (0.58 mm)
Nom. Insulation Diameter	0.070 in (1.8 mm)
Color Code	White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Braid	Tinned Copper (TC)	90%

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.020 in (0.51 mm)
Nom. Diameter	0.345 in (8.76 mm)

Nom Outer Shield DCR	3.1 Ohm/1000ft (10 Ohm/km)

Element	Pair(s)
Nom. Conductor DCR	24 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	12 pF/ft (39 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	22 pF/ft (72 pF/m)
Nom. Characteristic Impedence	120 Ohm
Nom. Velocity of Prop.	76%
Max. Current	4 Amps per Conductor at 25oC

Element	Pair(s)
Frequency [MHz]	1
Nom. Insertion Loss (Attenuation)	0.6 dB/100ft

UL Voltage Rating	300 V (CMP)

Max. Pull Tension	68 lbs (31 kg)
Bulk Cable Weight	44 lbs/1000ft

UL Temperature	200°C
Operating	-70°C to +200°C

Stationary Min.	3.25 in (82.6 mm)
Installation Min.	3.25 in (82.6 mm)

Environmental Suitability	Indoor, Oil Resistance
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	9842
