Product Number: 89740

Electronic, 2 C #18 Str TC, FEP Ins, FEP Jkt, CMP

Name: Belden 89740
Brand: Belden
SKU: 89740

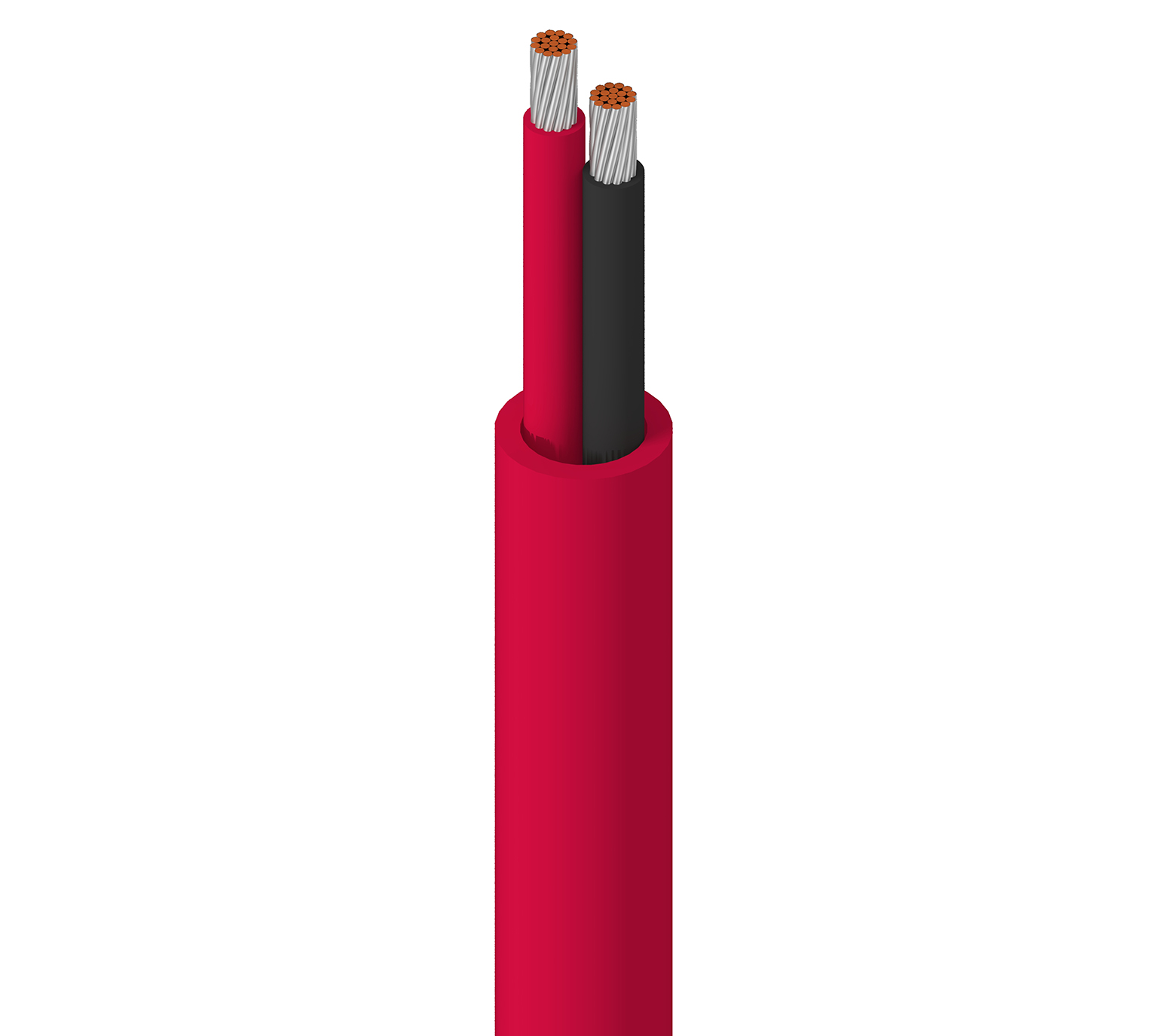

High Temperature Electronic, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, FEP Outer Jacket, CMP

Ships from and sold by A5 IT.

Part numbers

89740 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
89740 002100	Red	Reel	100 ft	612825221227	C	Order online
89740 002500	Red	Reel	500 ft	612825221258	C	Order online
89740 0021000	Red	Reel	1,000 ft	612825221234	C	Order online
89740 0023000	Red	Reel	3,000 ft	612825221241	C Z	Order online
89740 0025000	Red	Reel	5,000 ft	612825221265	C Z	Order online

Suitable Applications	extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; voice communications; panel wiring

Overall Cable Diameter (Nominal)	0.144 in (3.66 mm)

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.007 in (0.18 mm)
Nom. Insulation Diameter	0.057 in (1.4 mm)
Color Code	Black & Red

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.144 in (3.66 mm)

Element	Pair(s)
Nom. Conductor DCR	5.5 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	20 pF/ft (66 pF/m)
Nom. Characteristic Impedence	72 Ohm
Nom. Inductance	0.14 μH/ft (0.46 μH/m)
Max. Current	5.4 Amps per Conductor at 25oC

UL Voltage Rating	300 V (CMP), 150 V (CL3P)

Max. Pull Tension	49 lbs (22 kg)
Bulk Cable Weight	15 lbs/1000ft

UL Temperature	150°C
Operating	-70°C to +200°C

Stationary Min.	1.3 in (33 mm)
Installation Min.	1.3 in (33 mm)

Environmental Suitability	Indoor - Plenum, Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6, IEC 60332-1-2
NEC / UL Compliance	Article 725, Article 800
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	9740

Notes	For use in indoor plenum environments but also suitable for outddor and underground applications. Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

Update and Revision	Revision Number: 0.512 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
