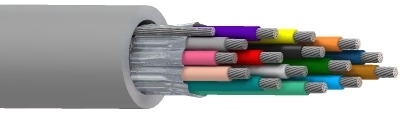

SpaceMakerTM, 15 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937
SpaceMakerTM, 15 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
8886MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8886MN 006100 | Blue, Light | Reel | 100 ft | 612825393047 | Order online |
| 8886MN 0061000 | Blue, Light | Reel | 1,000 ft | 612825393054 | Order online |
| 8886MN 008100 | Gray | Reel | 100 ft | 612825393061 | Order online |
| 8886MN 0081000 | Gray | Reel | 1,000 ft | 612825393078 | Order online |
| 8886MN 004100 | Yellow | Reel | 100 ft | 612825393023 | Order online |
| 8886MN 0041000 | Yellow | Reel | 1,000 ft | 612825393030 | Order online |
Specifications
Physical Characteristics (Overall)
| Conductor Count | 15 |
|---|
Conductor
| AWG | 22 |
|---|---|
| Stranding | 19x34 |
| Material | TC - Tinned Copper |
| No. of Conductors | 15 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nominal Wall Thickness | 0.016 in |
Color Chart
| Color |
|---|
| Black |
| White |
| Red |
| Dark Green |
| Brown |
| Dark Blue |
| Orange |
| Yellow |
| Purple |
| Gray |
| Pink |
| Tan |
| Aqua |
| Light Green |
| Light Blue |
Outer Shield
| Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Material Trade Name | Beldfoil® |
| Coverage [%] | 100% |
| Drainwire Material | TC - Tinned Copper |
| Drainwire AWG | 22 |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | 0.271 in |
| Nominal Wall Thickness | 0.016 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 14.9 Ohm/1000ft |
|---|
Capacitance
| Nom. Capacitance Conductor to Conductor | 33.0 pF/ft |
|---|---|
| Nom. Capacitance Conductor to Shield | 66.0 pF/ft |
Inductance
| Nominal Inductance | 0.031 μH/ft |
|---|
Impedance
| Nominal Characteristic Impedance | 22 Ohm |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 80°C |
|---|---|
| Operating Temperature Range | -20°C To +80°C |
Mechanical Characteristics
| Bulk Cable Weight | 74 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 77 lbs |
| Minimum Bend Radius During Installation | 1.080 in |
| Minimum Continuous Flexing Bend Radius | 2.710 in |
Standards
| UL AWM Style Compliance | AWM 2937 (300 V 80C) |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | Yes |
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| CSA Flammability | FT2 |
|---|---|
| UL voltage rating | 300 V RMS |
History
| Update and Revision | Revision Number: 0.219 Revision Date: 05-05-2023 |
|---|
