Product Number: 8877MN

SpaceMakerTM, 7 C #20 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

Name: Belden 8877MN
Brand: Belden
SKU: 8877MN

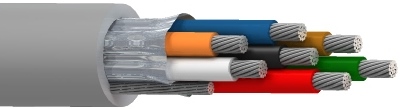

SpaceMakerTM, 7 Conductor 20AWG (26x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Ships from and sold by A5 IT.

Part numbers

8877MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8877MN 006100	Blue, Light	Reel	100 ft	612825392460	Order online
8877MN 0061000	Blue, Light	Reel	1,000 ft	612825392477	Order online
8877MN 008100	Gray	Reel	100 ft	612825392484	Order online
8877MN 0081000	Gray	Reel	1,000 ft	612825392491	Order online
8877MN 004100	Yellow	Reel	100 ft	612825392446	Order online
8877MN 0041000	Yellow	Reel	1,000 ft	612825392453	Order online

Overall Cable Diameter (Nominal)	0.207 in

Element	Conductor(s)
Material	PP - Polypropylene
Nom. Thickness	0.01 in (0.25 mm)
Nom. Insulation Diameter	0.057 in (1.4 mm)
Color Code	Black, White, Red, Green, Brown, Blue, Orange

Nom Outer Shield DCR	8.48 Ohm/1000ft (27.8 Ohm/km)

Nom. Conductor DCR	11.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	15.7 pF/ft (51.5 pF/m)
Nom. Capacitance Cond-to-Shield	61.3 pF/ft (201 pF/m)
Nom. Characteristic Impedence	47 Ohm
Nom. Inductance	0.026 μH/ft (0.085 μH/m)
Max. Current	2.66 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	103.6 lbs (46.99 kg)
Bulk Cable Weight	37 lbs/1000ft

UL Temperature	80°C
Operating	-20°C To +80°C

Stationary Min.	0.830 in (21.1 mm)
Installation Min.	0.830 in

Environmental Suitability	Indoor
AWM Compliance	AWM 2937
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
