SpaceMakerTM, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

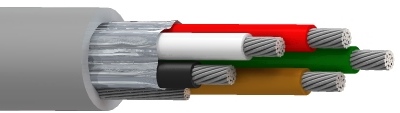

SpaceMakerTM, 5 Conductor 18AWG (41x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
8870MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8870MN 006100 | Blue, Light | Reel | 100 ft | 612825390879 | Order online |
| 8870MN 0061000 | Blue, Light | Reel | 1,000 ft | 612825390848 | Order online |
| 8870MN 008100 | Gray | Reel | 100 ft | 612825390886 | Order online |
| 8870MN 0081000 | Gray | Reel | 1,000 ft | 612825390855 | Order online |
| 8870MN 004100 | Yellow | Reel | 100 ft | 612825390862 | Order online |
| 8870MN 0041000 | Yellow | Reel | 1,000 ft | 612825390831 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.217 in. |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 5 |
| Size | 18 AWG |
| Stranding | 41x34 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.010 in (0.25 mm) |
| Nom. Insulation Diameter | 0.067 in (1.7 mm) |
| Color Code | Black, White, Red, Dark Green, Brown |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 18 AWG (19x30H) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Diameter | 0.217 in |
Electrical Characteristics
| Nom Outer Shield DCR | 5.3 Ohm/1000ft (17 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 7.06 Ohm/1000ft |
|---|---|
| Max. Current | 4 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 127.2 lbs (57.70 kg) |
|---|---|
| Bulk Cable Weight | 42 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|
Bend Radius
| Stationary Min. | 0.868 in (22.0 mm) |
|---|---|
| Installation Min. | 0.868 in |
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| AWM Compliance | AWM 2937 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.195 Revision Date: 09-07-2025 |
|---|
