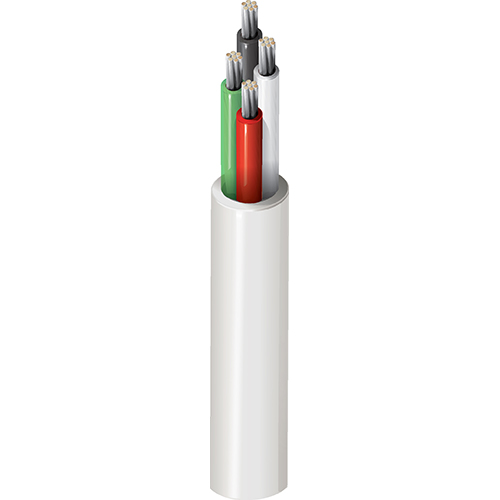

Electronic, 4 C #18 Str TC, FEP Ins, FEP Jkt, CMP
High Temperature Electronic, 4 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, FEP Outer Jacket, CMP
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
88489 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 88489 0021000 | Red | Reel | 1,000 ft | 612825217046 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 18 |
| Stranding | 19x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Thickness | 0.0065 in (0.17 mm) |
| Nom. Insulation Diameter | 0.042 in (1.1 mm) |
| Color Code | Black, White, Red, Green |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Thickness | 0.009 in (0.23 mm) |
| Nom. Diameter | 0.156 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 6.4 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 21 pF/ft (69 pF/m) |
| Max. Current | 11.52 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 82 lbs (37 kg) |
|---|---|
| Bulk Cable Weight | 28 lbs/1000ft |
Temperature
| Operating | -70°C To +200°C |
|---|
Bend Radius
| Stationary Min. | 1.56 in (39.6 mm) |
|---|---|
| Installation Min. | 1.56 in |
Standards and Compliance
| Environmental Suitability | Outdoor, Burial |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CL3P, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 8489 |
History
| Update and Revision | Revision Number: 0.360 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
