Product Number: 88125

RS232/422 Low Cap, #24-25pr, FFEP, O/A Foil, PVDF Jkt, CMP, 100Ω

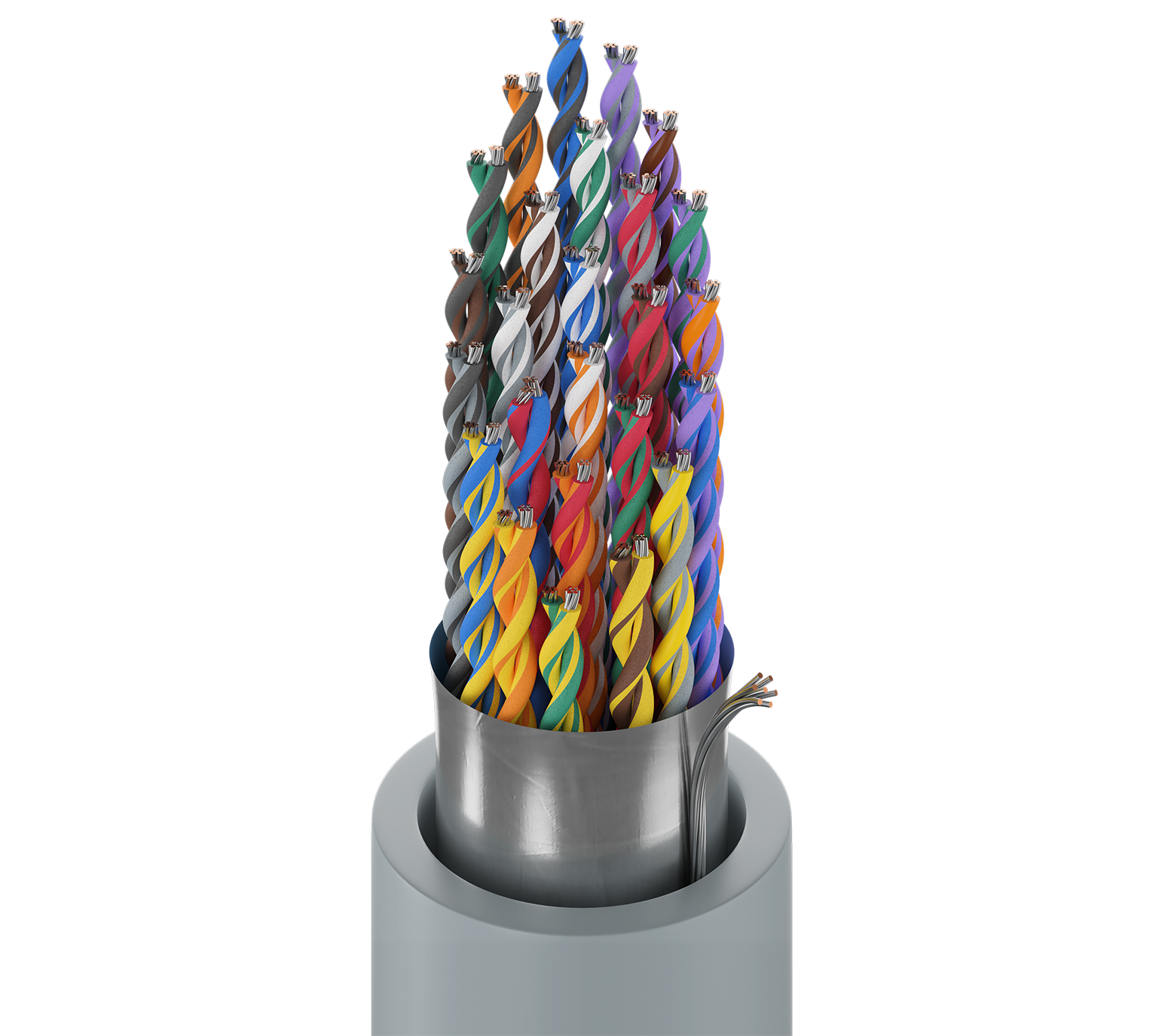

Computer EIA RS-232/422 Cable, 25-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

88125 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
88125 0081000	Gray	612825216834	C Z	Order online
88125 008500	Gray	612825216841	C Z	Order online

Specifications

Product Overview

Suitable Applications	extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.581 in (14.8 mm)

Conductor

Element	Pair(s)
No. of Elements	25
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Thickness	0.015 in (0.38 mm)
Color Code	White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe, Yellow/Blue Stripe & Blue/Yellow Stripe, Yellow/Orange Stripe & Orange/Yellow Stripe, Yellow/Green Stripe & Green/Yellow Stripe, Yellow/Brown Stripe & Brown/Yellow Stripe, Yellow/Gray Stripe & Gray/Yellow Stripe, Purple/Blue Stripe & Blue/Purple Stripe, Purple/Orange Stripe & Orange/Purple Stripe, Purple/Green Stripe & Green/Purple Stripe, Purple/Brown Stripe & Brown/Purple Stripe, Purple/Gray Stripe & Gray/Purple Stripe

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVDF - Polyvinylidene Fluoride
Nom. Thickness	0.019 in (0.48 mm)
Nom. Diameter	0.581 in (14.8 mm)

Electrical Characteristics

Nom Outer Shield DCR	9.6 Ohm/1000ft (31 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	24 Ohm/1000ft (79 Ohm/km)
Nom. Capacitance Cond-to-Cond	12.95 pF/ft (42.49 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	23.3 pF/ft (76.4 pF/m)
Nom. Characteristic Impedence	100 Ohm
Nom. Delay	1.3 ns/ft
Nom. Inductance	0.21 μH/ft (0.69 μH/m)
Nom. Velocity of Prop.	78%
Max. Current	1.1 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Max. Pull Tension	280 lbs (130 kg)
Bulk Cable Weight	179 lbs/1000ft (266 kg/km)

Temperature

UL Temperature	150°C
Operating	-20°C to +150°C

Bend Radius

Stationary Min.	5.8 in (150 mm)
Installation Min.	5.8 in (150 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262 Plenum Flame Test (UL910)
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.397 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
