Product Number: 8778LS

Audio, Control & Instrument, 6PR#22 Str TC, PO ins, IF, LSZH Jkt, 300V

Audio, Control & Instrument, 6 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

8778LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
8778LS.00500	Black	Reel	500 m	8719605019684	Order online
8778LS.001000	Black	Reel	1,000 m	8719605019677	Order online

Specifications

Product Overview

Suitable Applications	Instrumentation and computer cable; For data transmission applications

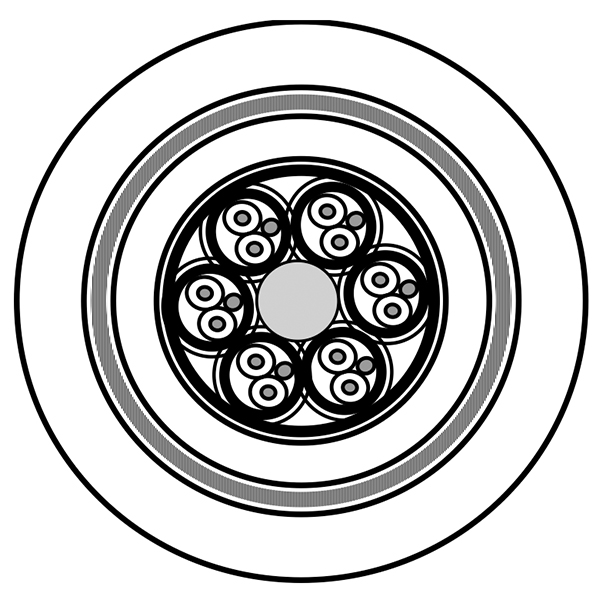

Construction Details

Conductor

Size	22
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Material	Nom. Insulation Diameter	Color Code
PP - Polypropylene	1.27 mm (0.0500 in)	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
		Red, Green, Blue

Inner Shield

Shield Type	Material
Tape	Bi-Laminate (Alum+Poly)
Tape	Polyester

Outer Shield

Material	Bi-Laminate (Alum+Poly)

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.89 mm (0.035 in)
Nom. Diameter	9.5 mm (0.37 in)
Color	Chrome (RAL 7037)

Armor

Armor Type & Material	SWA - Steel Wire Armor
Armor Thickness	1.25 mm
Coverage	Min. 95%

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	1.35 mm (0.0531 in)
Nom. Diameter	13.9 mm (0.547 in)

Electrical Characteristics

Electricals

Nom. Conductor DCR	49.2 Ohm/km (15.0 Ohm/1000ft)
Nom. Inner Shield DCR	34.8 Ohm/km (10.6 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	98.4 pF/m (30.0 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	180.4 pF/m (54.99 pF/ft)
Nom. Characteristic Impedence	50 Ohm
Max. Current	2 A

Mechanical Characteristics

Temperature

Installation	-15°C To +80°C
Storage	-45°C To +80°C

Bend Radius

Installation Min.	208.5 mm (8.209 in)

Standards and Compliance

Environmental Suitability	Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Sunlight Resistance, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404
Flammability / Reaction to Fire	IEC 60332-3-24
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
