Product Number: 87740

Electronic, 2 C #18 Str TC, FEP Ins, PVDF Jkt, CMP

Name: Belden 87740
Brand: Belden
SKU: 87740

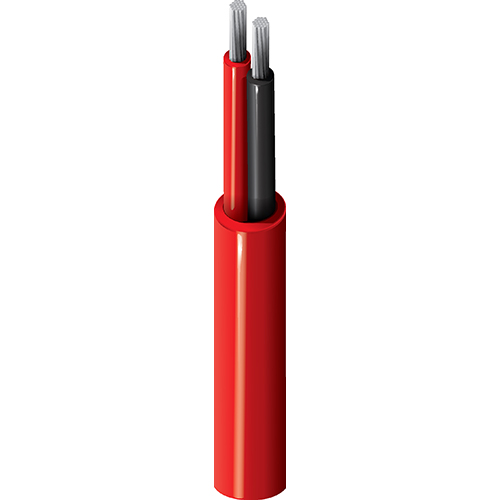

High Temperature Electronic, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, PVDF Outer Jacket, CMP

Ships from and sold by A5 IT.

Part numbers

87740 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
87740 0021000	Red	Reel	1,000 ft	612825215936	C	Order online

Suitable Applications	extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; voice communications; panel wiring

Overall Cable Diameter (Nominal)	0.136 in.

Element	Pair(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.0065 in (0.17 mm)
Nom. Insulation Diameter	0.057 in (1.4 mm)
Color Code	Black & Red

Material	No Shield

Material	PVDF - Polyvinylidene Fluoride
Nom. Thickness	0.011 in (0.28 mm)
Nom. Diameter	0.136 in

Nom. Conductor DCR	7.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	20 pF/ft (66 pF/m)
Nom. Characteristic Impedence	72 Ohm
Nom. Inductance	0.14 μH/ft (0.46 μH/m)
Max. Current	8.2 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	49 lbs (22 kg)
Bulk Cable Weight	15 lbs/1000ft

UL Temperature	150°C
Operating	-20°C To +150°C

Stationary Min.	1.36 in (34.5 mm)
Installation Min.	1.36 in

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
NEC / UL Compliance	Article 725, Article 800, CL3P, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	9740
