Product Number: 8772ZH

Electronic, 3 C #20 Str TC, PO Ins, OS, LSZH Jkt, CMG

Name: Belden 8772ZH
Brand: Belden
SKU: 8772ZH

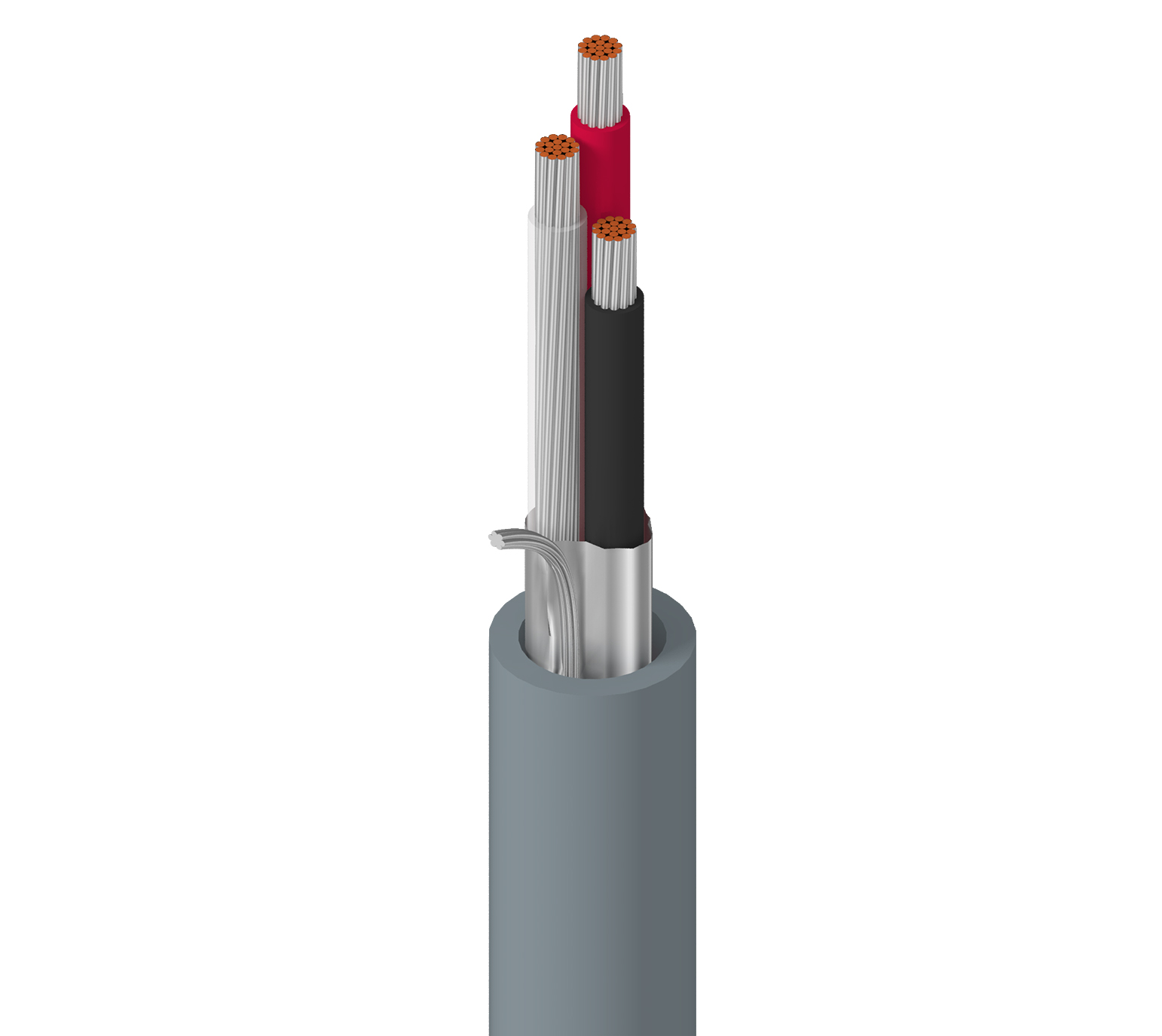

Electronic, 3 Conductor 20AWG (7x28) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG

Ships from and sold by A5 IT.

Part numbers

8772ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8772ZH 0601000	Chrome	Reel	1,000 ft	612825382508	Order online

Overall Cable Diameter (Nominal)	0.218 in.

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.033 in (0.84 mm)
Nom. Diameter	0.218 in

Nom Outer Shield DCR	8.9 Ohm/1000ft (29 Ohm/km)

Nom. Conductor DCR	9.5 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	27 pF/ft (89 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	51 pF/ft (170 pF/m)
Max. Current	3.9 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	45 lbs (20 kg)
Bulk Cable Weight	29 lbs/1000ft

UL Temperature	75°C
Operating	-20°C To +75°C

Stationary Min.	2.18 in (55.4 mm)
Installation Min.	2.18 in

Environmental Suitability	Indoor, Non-Halogenated
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 21305
CEC / C(UL) Compliance	CMG.
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
