Product Number: 8771ZH

Electronic, 3 C #22 Str TC, PO Ins, OS, LSZH Jkt, CMG

Name: Belden 8771ZH
Brand: Belden
SKU: 8771ZH

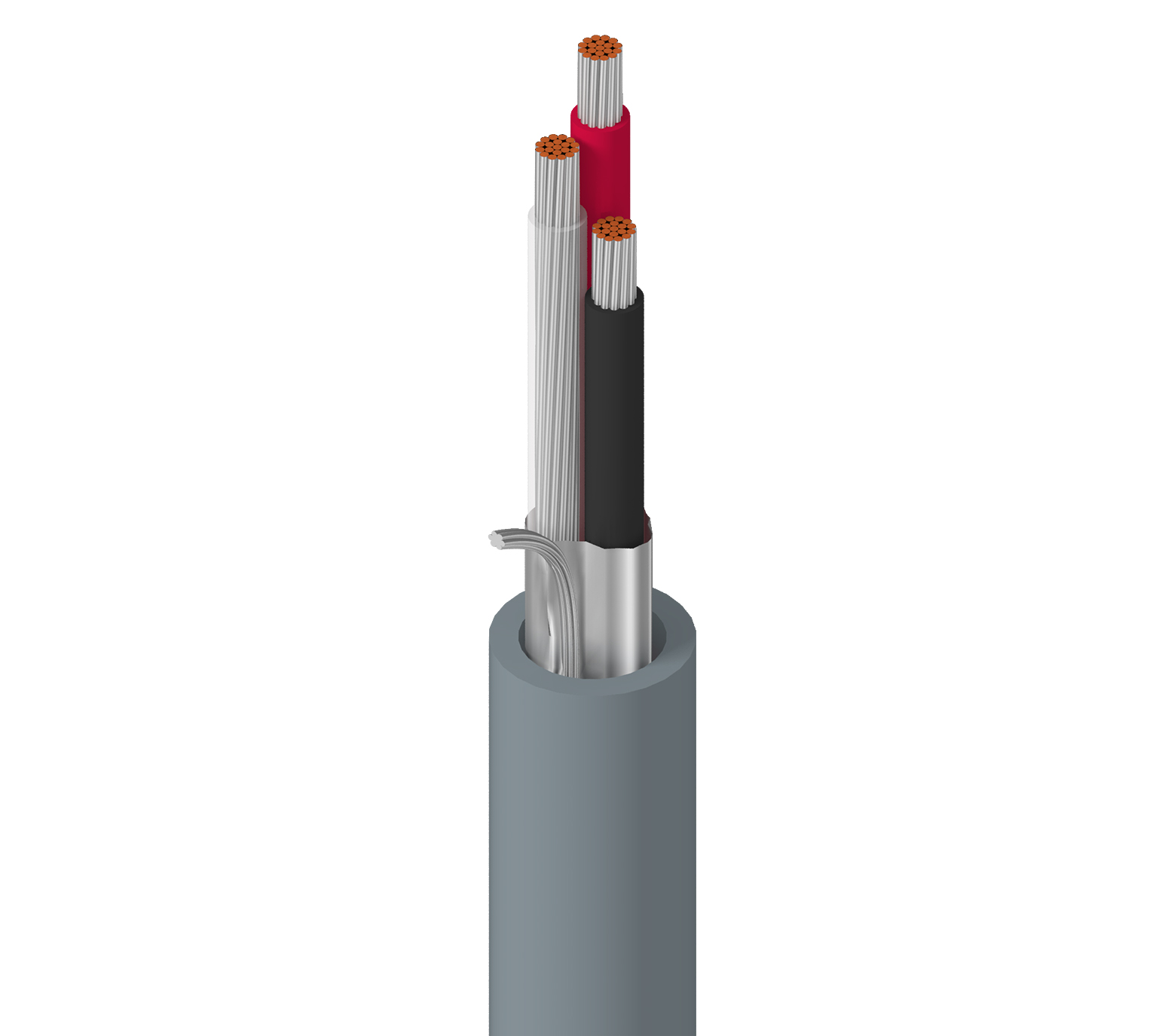

Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG

Ships from and sold by A5 IT.

Part numbers

8771ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8771ZH 060500	Chrome	Reel	500 ft	612825382492	Order online
8771ZH 0601000	Chrome	Reel	1,000 ft	612825382485	Order online

Overall Cable Diameter (Nominal)	0.199 in.

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.033 mm (0.0013 in)
Nom. Diameter	0.199 in

Nom Outer Shield DCR	11.7 Ohm/1000ft (38.4 Ohm/km)

Nom. Conductor DCR	15 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	41 pF/ft (130 pF/m)
Max. Current	2.9 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	36 lbs (16 kg)
Bulk Cable Weight	22 lbs/1000ft

UL Temperature	75°C
Operating	-20°C To +75°C

Stationary Min.	1.99 in (50.5 mm)
Installation Min.	1.99 in

Environmental Suitability	Indoor, Non-Halogenated
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 21305
CEC / C(UL) Compliance	CMG.
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
