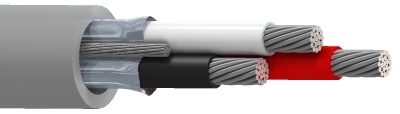

SpaceMakerTM, 3 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937
SpaceMakerTM, 3 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
8771MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 8771MN 006100 | Blue, Light | 612825386407 | Order online |
| 8771MN 0061000 | Blue, Light | 612825386414 | Order online |
| 8771MN 008100 | Gray | 612825386421 | Order online |
| 8771MN 0081000 | Gray | 612825386438 | Order online |
| 8771MN 004100 | Yellow | 612825386384 | Order online |
| 8771MN 0041000 | Yellow | 612825386391 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.144 in. |
|---|
Conductor
| Element | Triad(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 19x34 |
| Material | TC - Tinned Copper |
Insulation
| Element | Triad(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.010 in (0.25 mm) |
| Nom. Insulation Diameter | 0.050 in (1.3 mm) |
| Color Code | Black, White and Red |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (19x36) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Diameter | 0.144 in |
Electrical Characteristics
| Nom Outer Shield DCR | 16.44 Ohm/1000ft (53.94 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 14.9 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 33.0 pF/ft (108 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 66.0 pF/ft (217 pF/m) |
| Nom. Characteristic Impedence | 45 Ohm |
| Nom. Inductance | 0.031 μH/ft (0.10 μH/m) |
| Max. Current | 2.9 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 33 lbs (15 kg) |
|---|---|
| Bulk Cable Weight | 14 lbs/1000ft |
Temperature
| UL Temperature | 80°C (AWM 2937) |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 0.576 in (14.6 mm) |
|---|---|
| Installation Min. | 0.576 in |
| Flexing Min. | 1.440 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | FT2 |
| AWM Compliance | AWM 2937 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.278 Revision Date: 09-07-2025 |
|---|
