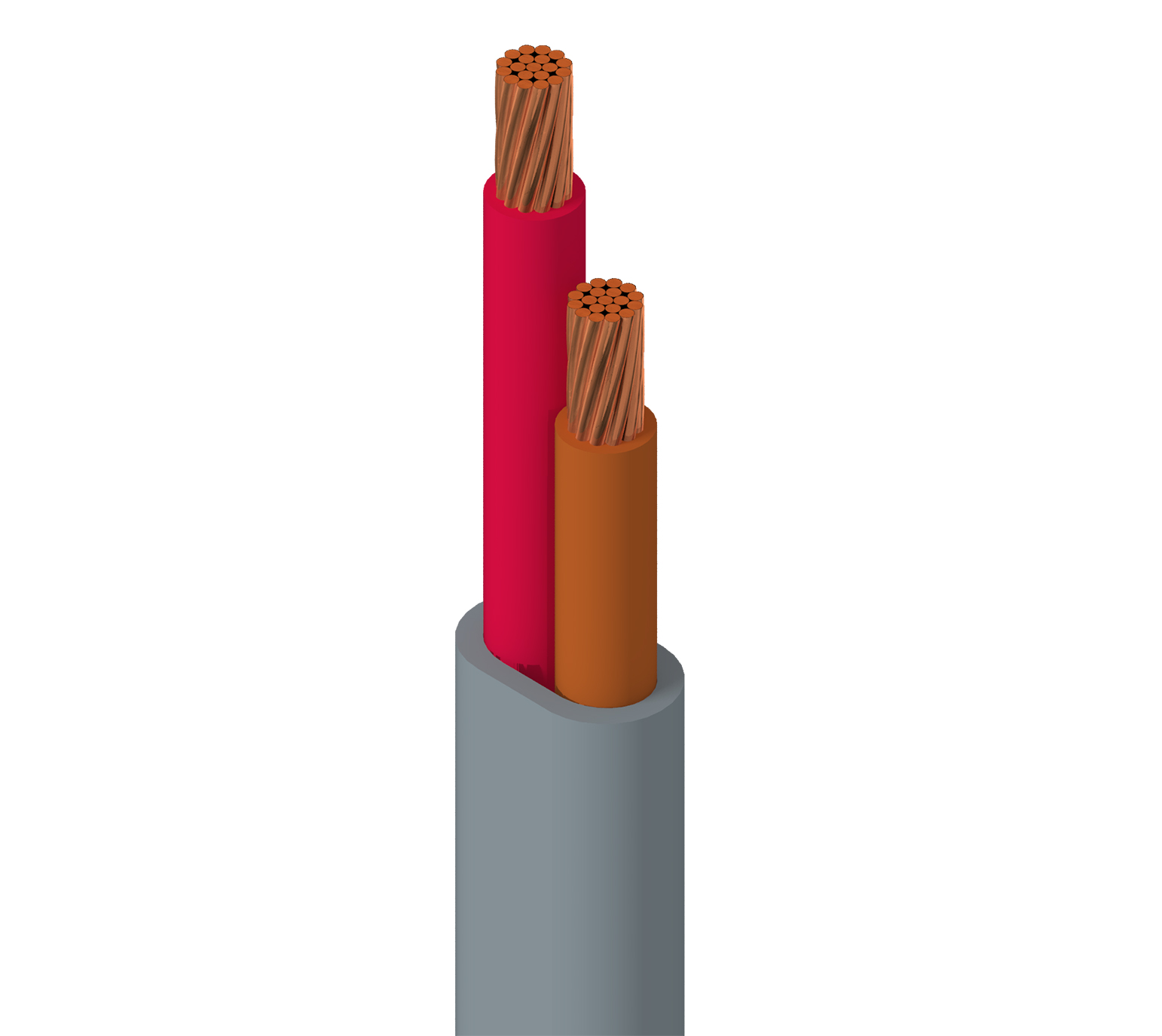

Electronic, 2 C #14 Str BC, PVC Ins
Electronic, 2 Conductor 14AWG (19x26H) Bare Copper, PVC Insulation
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
8675 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 8675 060500 | Chrome | Reel | 500 ft | 612825214021 | C | Order online |
Specifications
Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.168 x 0.29 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 AWG |
| Stranding | 19x26 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Insulation Diameter | 0.122 in (3.10 mm) |
| Color Code | Brown, Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Diameter | 0.168 x 0.29 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 7.06 Ohm/1000ft |
|---|---|
| Max. Current | 8.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 95 lbs (43 kg) |
|---|---|
| Bulk Cable Weight | 44 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 0.4872 in (12.37 mm) |
|---|---|
| Installation Min. | 0.4872 in |
Standards and Compliance
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|---|---|
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.406 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
