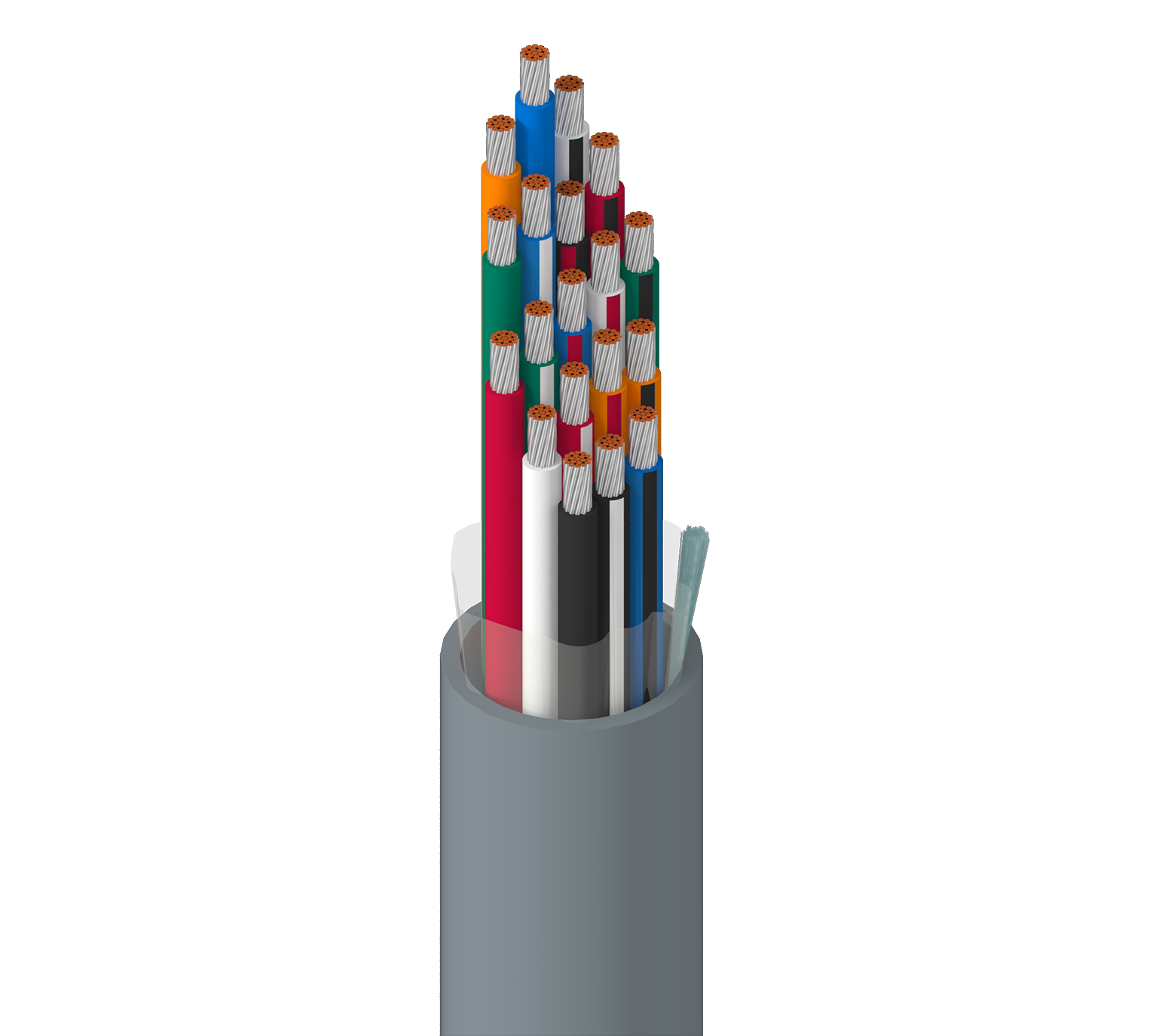

Electronic, 19 C #16 Str TC, PVC Ins, PVC Jkt
Electronic, 19 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8624 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 8624 060500 | Chrome | Reel | 500 ft | 612825213659 | C | Order online |
| 8624 0601000 | Chrome | Reel | 1,000 ft | 612825213642 | C | Order online |
Specifications
Product Overview
| Suitable Applications | up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.740 in (18.8 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 19 |
| Size | 16 AWG |
| Stranding | 19x29 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.031 in (0.79 mm) |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.065 in (1.7 mm) |
| Nom. Diameter | 0.740 in (18.8 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 4.4 Ohm/1000ft (14 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 19.5 pF/ft (64.0 pF/m) |
| Max. Current | 3.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 577 lbs (262 kg) |
|---|---|
| Bulk Cable Weight | 336 lbs/1000ft (500 kg/km) |
Temperature
| Operating | -20°C to +80°C |
|---|
Standards and Compliance
| Flammability / Reaction to Fire | UL 1581 (VW-1), IEC 60332-1-2 |
|---|---|
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.335 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
